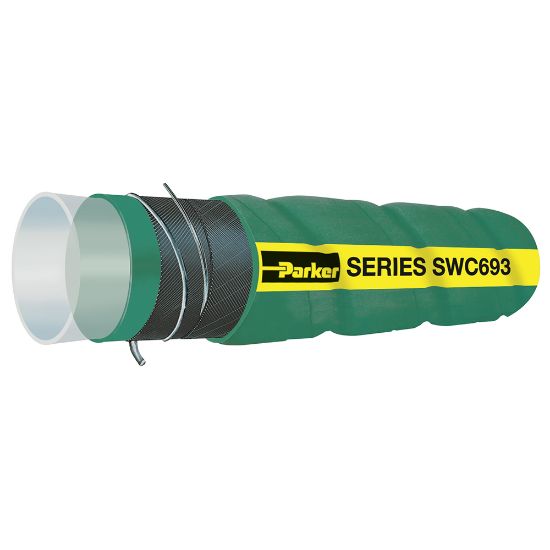

Parker SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Name: Parker SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC693-2000
Price: 26.02 USD
Availability: InStock

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

AFP Availability:

184 In Stock

Sumter, SC	163
Summerville, SC	21

Partner Available:

3040 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SWC693-2000

$26.02/each

Qty:

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Outside Diameter	64.5 mm
Vacuum Pressure Rating	737 mm-Hg	Inside Diameter	2 inch
Compatible Fitting	n/a	Media	Solvents
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Maximum Operating Temperature	82 °C
Size	-32	Application	Processing
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	50 mm
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	250 psi
Cover Structure	Corrugated	Weight	0.93 lb/ft
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Minimum Bend Radius	51 mm
Hose I.D. (inch)	2	Color	Green
