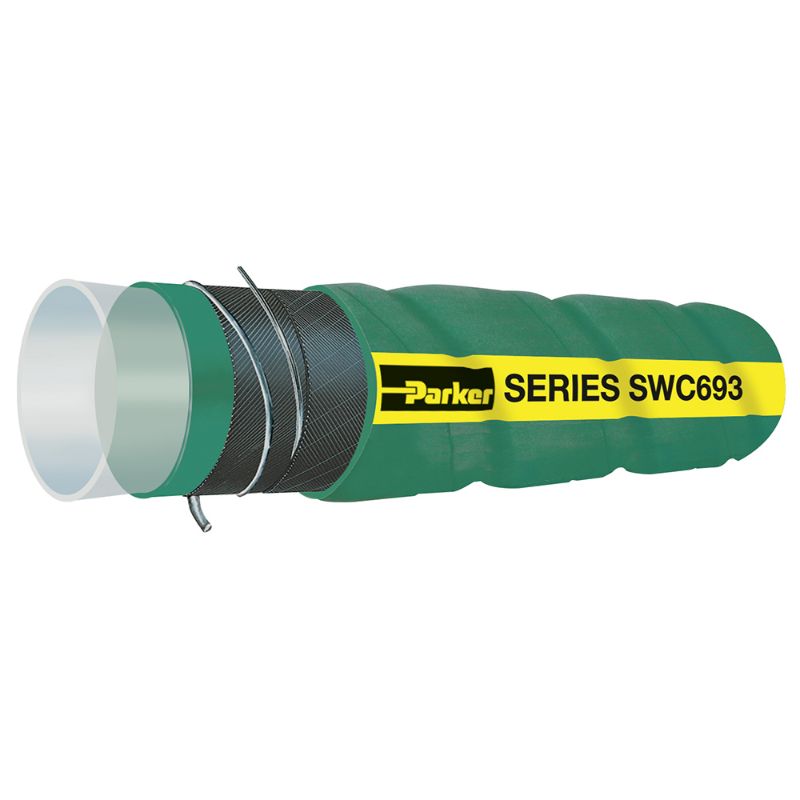

Parker SWC693-1500 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Name: Parker SWC693-1500 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC693-1500
Price: 22.23 USD
Availability: InStock

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

AFP Availability:

58 In Stock

Sumter, SC

Partner Available:

1013 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SWC693-1500

$22.23/each

Qty:

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	38 mm	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Operating Temperature	-40 °C
Application	Processing	Nominal Hose Inside Diameter	40 mm
Cover Structure	Corrugated	Inside Diameter	38.1 mm
Outside Diameter	1.990 inch	Weight	0.92 kg/m
Maximum Operating Pressure	250 psi	Maximum Operating Temperature	180 °F
Division	Hose Products Division	Vacuum Pressure Rating	737 mm-Hg
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Media	Chemicals
Size	-24	Compatible Fitting	n/a
Color	Green	Hose I.D. (inch)	1-1/2
