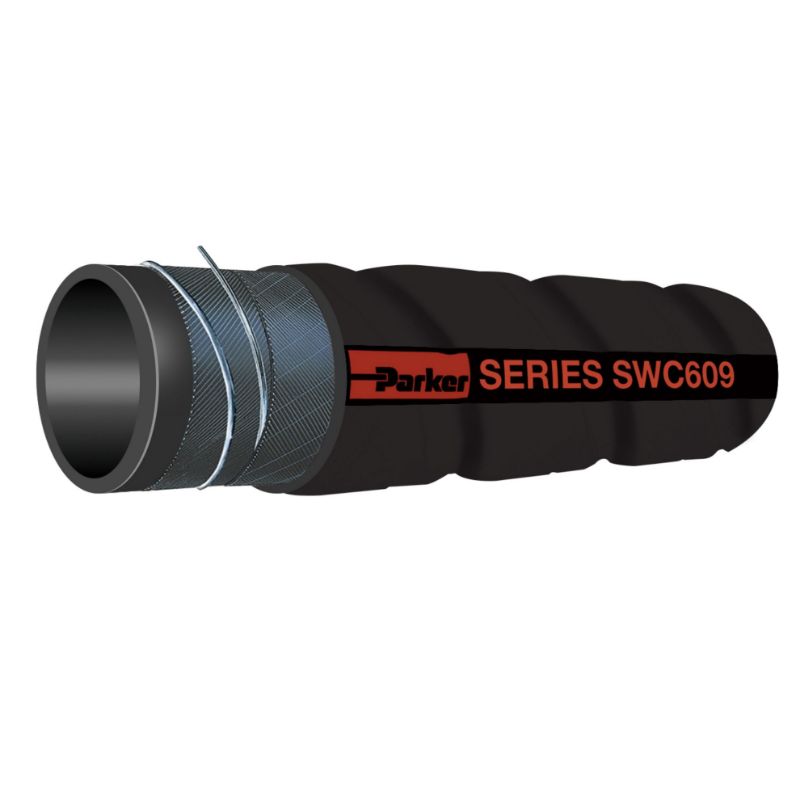

Parker SWC609-1500 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Availability:	Quote Required
Partner Available:	296 In Stock

Brand Parker

Part No. SWC609-1500

$18.24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.78 lb/ft
Hose Inner Tube Material	Nitrile	Maximum Operating Temperature	180 °F
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Nominal Hose Inside Diameter	40 mm
Cover Structure	Corrugated	Application	Petroleum Transfer
Media	Lubricants (Oils)	Vacuum Pressure Rating	737 mm-Hg
Minimum Bend Radius	38 mm	Inside Diameter	38.1 mm
Cover Material	Nitrile	Maximum Operating Pressure	17.2 bar
Minimum Operating Temperature	-40 °F	Division	Hose Products Division
Size	-24	Outside Diameter	1.950 inch
Color	Black	Hose I.D. (inch)	1-1/2
