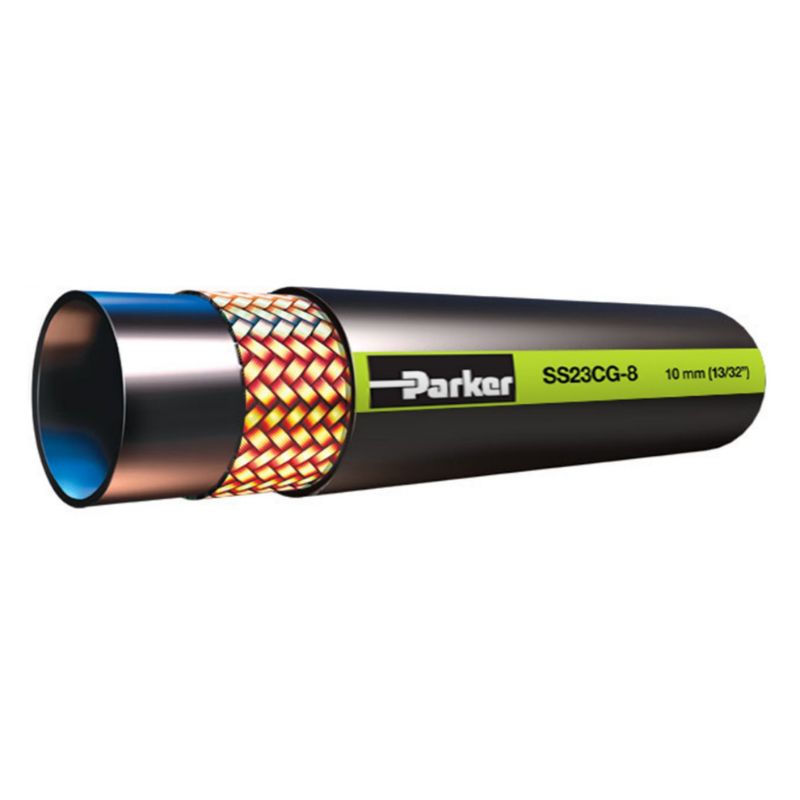

Parker SS23CG-10 - Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose

Parker's SS23CG hose is a compressed natural gas and liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SS23CG-10

Products specifications

Attribute name	Attribute value
Hose Reinforcement Material	1 Braid of Steel Wire	Minimum Operating Temperature	-40 °C
Hose Cover Type	Standard Cover	Specifications Met	ECE R110, Class 1 (Standard 21 LPG)
Media	Welding Gases (Technical Gases)	Compatible Fitting	26 Series
Weight	0.42 kg/m	Inside Diameter	12.5 mm
Maximum Operating Temperature	121 °C	Nominal Hose Inside Diameter	12 mm
Cover Material	Synthetic Rubber	Outside Diameter	23.4 mm
Division	Hose Products Division	Minimum Bend Radius	5-1/2 inch
Hose Inner Tube Material	Polyamide (PA)	Application	Liquefied Petroleum Gas (LPG)
Maximum Operating Pressure	3 MPa	Hose I.D. (size)	-10
