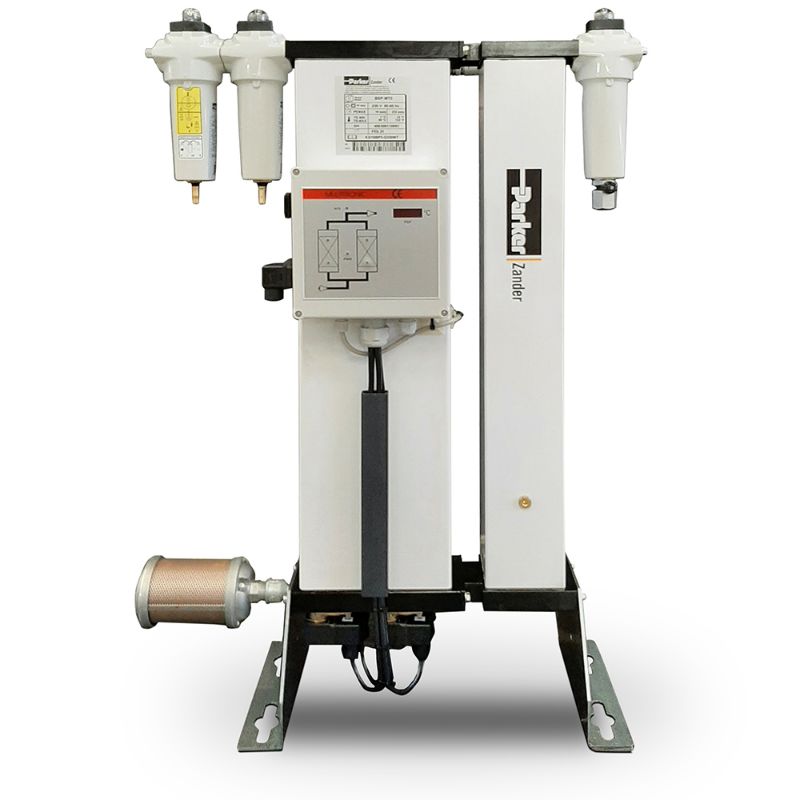

Parker K1/16BP3-G115M - Breathing Star BSP-MT 1-8 Industrial and Medical Breathing Air System

Small to medium flow breathing air treatment systems providing purified breathing air, with CO/CO2 reduction. Meeting European Pharmacopoeia and other international breathing air standards with volume flow rates up to 139 m³/h @ 13 barg.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K1/16BP3-G115M

Products specifications

Attribute name	Attribute value
Specifications Met	PED 2014/68/EU Fluid Group II	Weight	16.5
Brand	Parker	Width	575.0
Operating Temperature	5 to 50	Division	Gas Separation and Filtration Division EMEA
Product Series	BSP-MT 1-8	Pressure Dew Point	-40
Compatible After Filter	OIL-X AOPX010A (Included)<br/>OIL-X AAPX010A (Option)	Product Type	Breathing Air Purifier
Ambient Temperature	50.0 °C Maximum	Application	• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• Demolition
Height	403.0	Connection Type	BSPP
Technology	Filtration	Noise Level	< 75
Ingress Protection Rating	IP65 Indoor Use Only	Depth	216.0
Operating Pressure	4 to 16	ISO Grade	ISO8573-1:2010 Class 2.2.1
Industry	Agriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &	Compatible Prefilter	OIL-X AOPX010A and AAPX010A (Included)
Flow Rate	13 m³/h @ 13 barg (8 cfm @ 189 psig)	Optional Accessories	None
Electrical Requirements	115V 1ph 50/60Hz	Port Size	¼ inch
