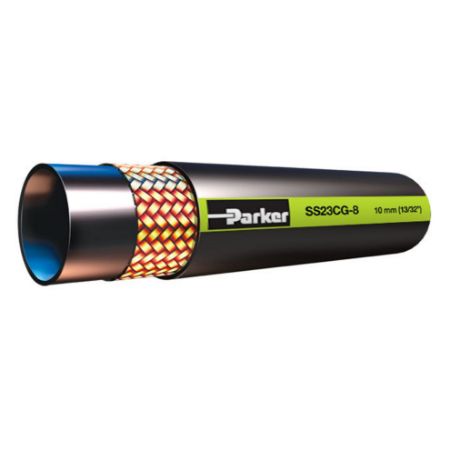

Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker's SS23CG hose is a compressed natural gas and liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability. The SS23CG hose is designed, built, and tested to meet UL 21 / CSA 8.1 2015 Type III / NFPA 58 performance specifications. Sizes range from 5/16” to 5/8” in diameter to fit the requirements of various markets. For ECE R110 and ECE R67 approval, contact Hose Products Division.

Markets:
• Transportation
• Agriculture
• Material Handling

Features/Benefits:
• 350 PSI constant working pressure in different sizes
• Meets UL 21 / CSA 8.1 2015 Type III / NFPA 58 certifications

Applications:
• Liquefied petroleum gas (LPG)
• Compressed natural gas (CNG)

Compatible Fittings:
• 26 series fittings

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Division	Outside Diameter	Inside Diameter	Compatible Fitting	Media	Hose Inner Tube Material	Maximum Operating Temperature	Hose Cover Type	Cover Material	Minimum Operating Temperature	Nominal Hose Inside Diameter	Application	Weight	Maximum Operating Pressure	Specifications Met	Hose Reinforcement Material	Minimum Bend Radius	Hose I.D. (size)
	SS23CG-6	Quote Required	30 In Stock	$9.62/foot	FT	Hose Products Division	0.680 inch	5/16 inch	26 Series	Welding Gases (Technical Gases)	Polyamide (PA)	250 °F	Standard Cover	Synthetic Rubber	-40 °F	8 mm	Liquefied Petroleum Gas (LPG)	0.16 lb/ft	3 MPa	ECE R110, Class 1 (Standard 21 LPG)	1 Braid of Steel Wire	100 mm	-6
