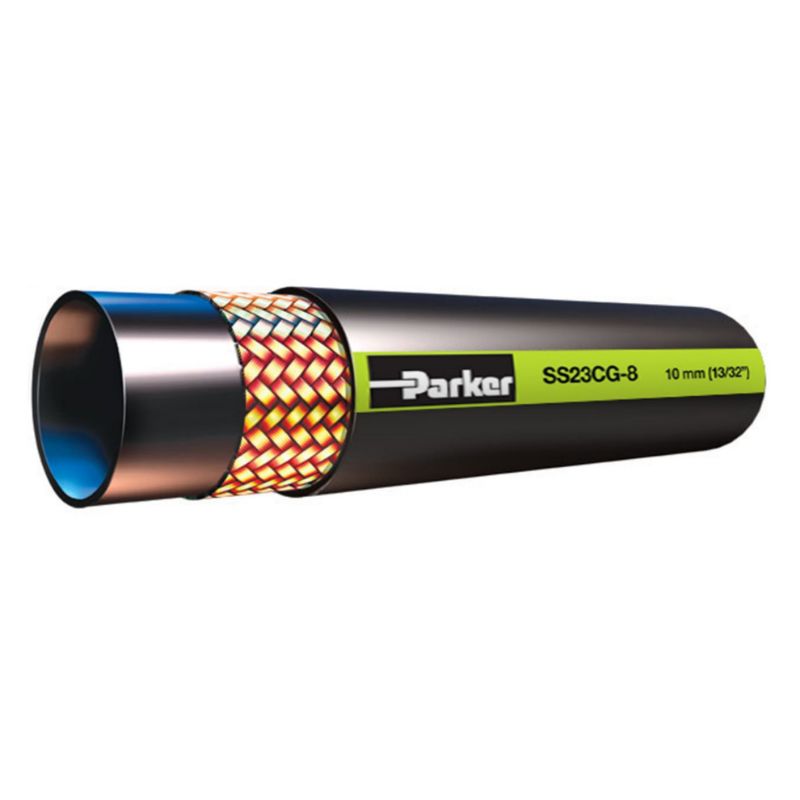

Parker SS23CG-6 - Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose

Parker's SS23CG hose is a compressed natural gas and liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability.

Availability:	Quote Required
Partner Available:	644 In Stock

Brand Parker

Part No. SS23CG-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	5/16 inch
Hose Cover Type	Standard Cover	Application	Liquefied Petroleum Gas (LPG)
Maximum Operating Temperature	250 °F	Hose Inner Tube Material	Polyamide (PA)
Nominal Hose Inside Diameter	8 mm	Media	Welding Gases (Technical Gases)
Weight	0.16 lb/ft	Minimum Bend Radius	100 mm
Hose Reinforcement Material	1 Braid of Steel Wire	Specifications Met	ECE R110, Class 1 (Standard 21 LPG)
Compatible Fitting	26 Series	Outside Diameter	0.680 inch
Maximum Operating Pressure	3 MPa	Cover Material	Synthetic Rubber
Minimum Operating Temperature	-40 °F	Division	Hose Products Division
Hose I.D. (size)	-6
