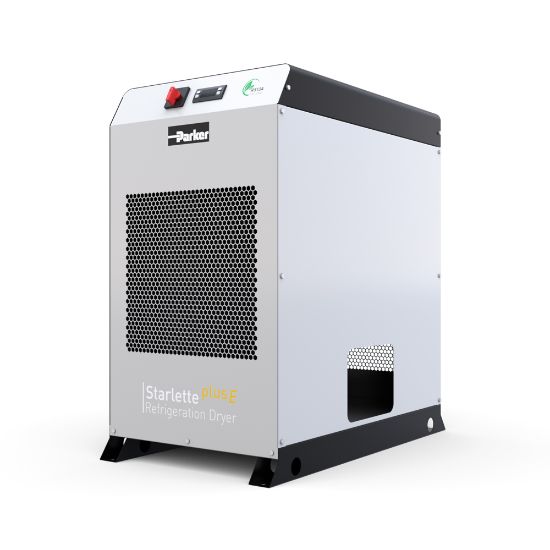

Parker SPS015-A11516016TIU - StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America

Refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 10-250 scfm while maintaining industry leading low operating costs.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS015-A11516016TIU

Products specifications

Attribute name	Attribute value
Maximum Ambient Temperature	50.0 °C	Weight	53 lb
Refrigerant Type	R-513A	Minimum Operating Pressure	2.0 barg
Port Connection	1/2 in	Optional Accessories	Dryer Only
Electronics Type	ETL Listed	Technology	Non-Cycling
Product Type	Refrigeration	Ingress Protection Rating	IP44
Connection Type	NPT-F	Width	300.0 mm
Pressure Dew Point	ISO 8573-1 Class 5	Minimum Operating Temperature	5.0 °C
Division	Industrial Gas Filtration and Generation Division	Depth	400.0 mm
Maximum Operating Pressure	16.0 barg	Height	20.5 inch
Maximum Operating Temperature	65.0 °C	Brand	Parker
Flow Rate	15 scfm (25.5 m3/h)	Cooling Method	Air Cooled Condenser
Electrical Requirements	115V / 1Ph / 60Hz	Design Rating	100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient

Product resources

Literature and Reference Materials
