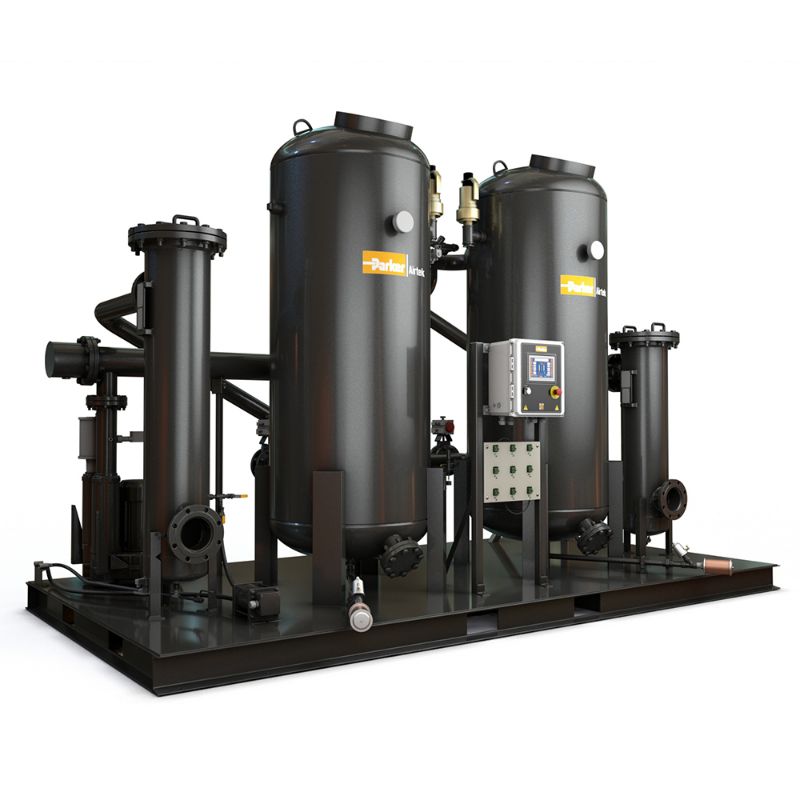

Parker TWB3001FY41NNN - Blower Purge Heat Reactivated Desiccant Air Dryer -TWB Series

Parker Airtek TWB Series Externally Heated Blower Purge Desiccant Air Dryers use heat and the adsorption method to remove moisture from compressed air. Pressure dewpoint of -40°F (-40°C) and flowrate of 200 – 7500 scfm depending on model.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TWB3001FY41NNN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	50 °F	Optional Accessories	Pre and After Filtration
Maximum Inlet Pressure Rating	100 PSI	Width	132 inch
Compatible After Filter	JLA3506-FH	Maximum Operating Pressure	135 psi
Connection Type	6" Flg	Minimum Operating Pressure	80 psi
Weight	12650 lb	Purge Pressure Rate	0
Brand	Airtek	Minimum Ambient Temperature	40 °F
Installed Condensate Drain Type	Demand Solenoid Drain	Compatible Prefilter	JLA3206-C
Division	Industrial Gas Filtration and Generation Division	Height	112 inch
Compatible After Filter Element	(3) JAE3-FH	Maximum Ambient Temperature	120 °F
Maximum Flow Rate	5097 m3/hour	Depth	72 inch
Compatible Prefilter Element	(4) JAE3-C	Maximum Operating Temperature	120 °F
Product Type	Blower Purge	Electrical Requirements	460V/3Ph/60Hz
Maximum Flow Rate (cfm)	3000	Pressure Dew Point (F)	-40
