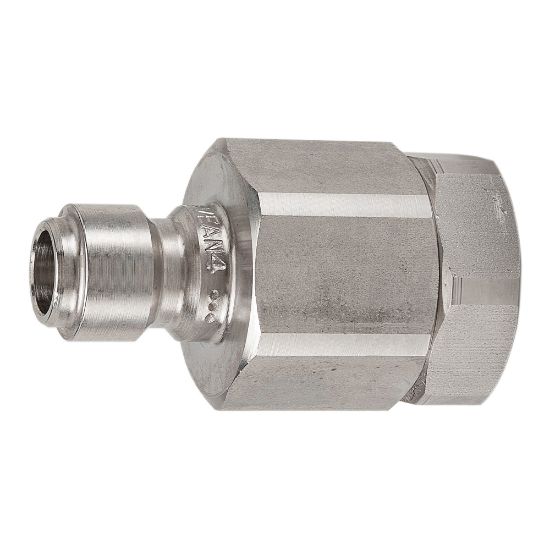

Parker SPEAN4-4F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPEAN4-4F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Vacuum and medium pressure hydraulics	Minimum Operating Temperature	-40 °F
Plating Type	na	Seal Material	na
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Type	Unvalved
Vacuum Pressure Rating	1/4 Inch-Hg	Hex Size	0.62 inch
Body Material	Stainless Steel	Body Size (inch)	1/4
Maximum Operating Pressure	3000	Body Material	Stainless Steel
Connection Type	Female NPSF	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/4 - 18
