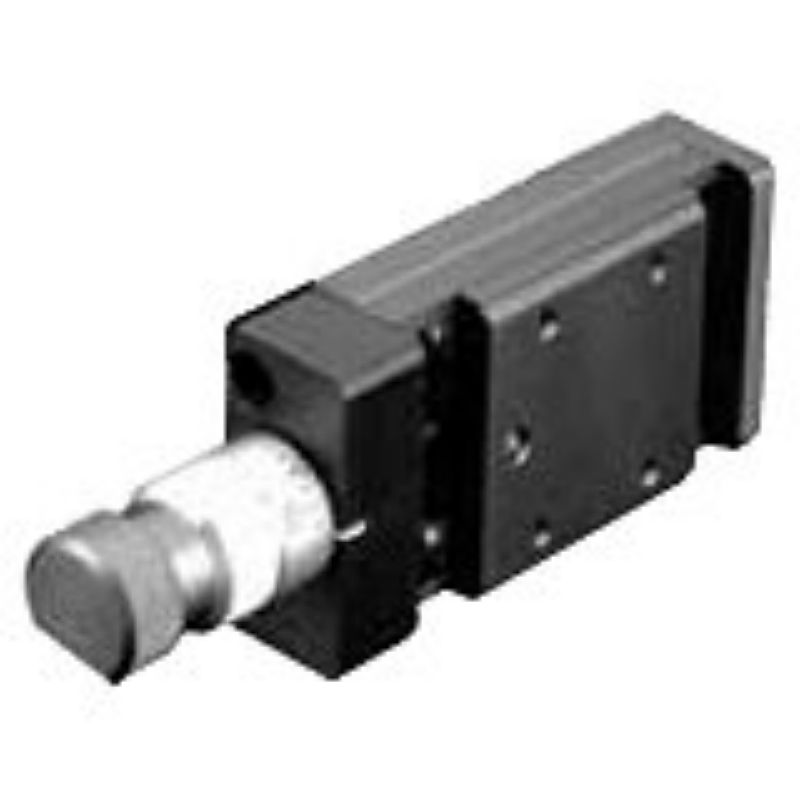

Parker SK050A-075 - Manual Knob Driven, Cross Roller Bearing Guided, Metric Mount Linear Positioning Stages - SK Series

SK-series crossed roller bearing guided manual linear positioners have an integral knob driven mechanism and offer travels of up to 3.9", payloads up to 702 lbs, plus very good smoothness, very low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SK050A-075

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	1.97 inch	Load Capacity	500 to 999 lb
Bearing Type	Cross Roller	Product Type	Linear Stage
Maximum Travel	25 mm	Product Series	SK Series
Number of Axes	1	Mounting Option	Metric Model
Drive Train Type	Knob	Division	Electronic Motion and Controls Division
Travel (mm)	25	Width (mm)	50.000
Payload (lbs)	175
