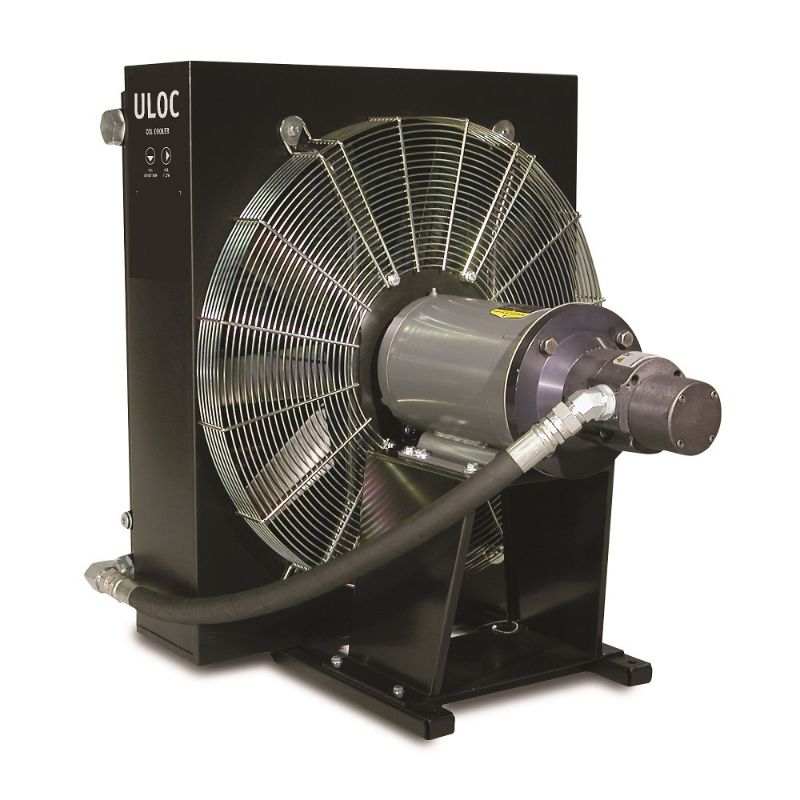

Parker ULOC-007D-M-A-SA - Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas)

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULOC-007D-M-A-SA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Materials of Construction	Glass Fiber Reinforced Polypropylene	Width	26.1 inch
Motor Type	Three Phase	Motor Power Output Rating	1 HP
Maximum Fluid Temperature	250 °F	Specifications Met	UL, CSA and CE Available on Motor
Noise Level	71 dBA	Frequency	50/60 Hz
Length	14.4 inch	Division	Accumulator and Cooler Division
Input Voltage	190/380	Maximum Cooling Capacity	8.5 HP
Connection Thread Size	1-5/16"-12 inch	Flow Rate	23.8 L/min
Weight	29.9 kg	For Fluid Type	Water Glycol
Height	396.2 mm	Maximum Operating Pressure	300 psi
Port Size	1	Pump Size	6.3 gpm
Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz	Size	Size 007D
Bypass Options	20 psi External Hose Bypass
