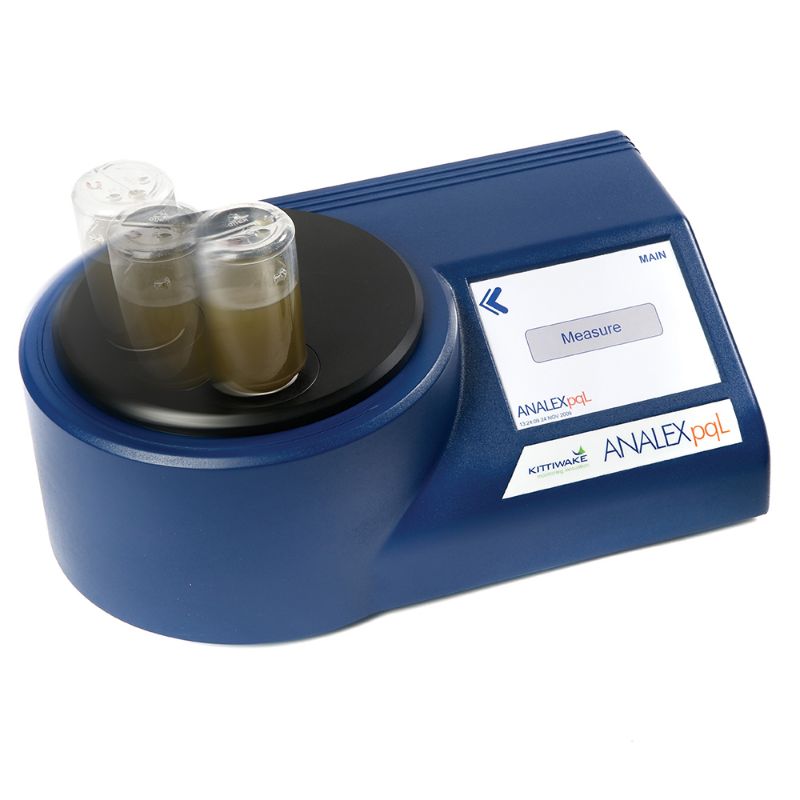

Parker FG-K17000-KW - ANALEX_PQL -Ferrous Debris Monitor

Laboratory-grade instrument, providing the most accurate means of detecting, measuring and trending ferrous wear debris in a fluid or grease sample that has been in contact with machinery parts.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FG-K17000-KW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Signal Output	RS232	Division	Hydraulic & Industrial Process Filtration Division EMEA
Flow Rate	n/a	Connection Type	n/a. Manually or automatically fed samples
Operating Temperature	10 to 30 °C	Communication Interface	PC and Ethernet Connectivity
Sensing Method	Ferrography	Features	Rapid tesing for magnetic iron in fluid samples
Product Type	Condition Monitor	Industry	Marine
Brand	Parker	Division	Hydraulic & Industrial Process Filtration Division EMEA
Options	Various sample bottles and adapters	For Fluid Type	Oil
Electrical Requirements	24 VDC	Weight	3.6 kg
Accessories Included	Instructions, case, 5 mL test pots, bottle adapters, verification standards, Power supply with UK, EU and US power adaptors	Wetted Material	Polypropylene 5 ml test tube
Cycle Time	4 second	Size	140 mm x 370 mm x 230 mm (HWD)
Accuracy	1%	Sensor Connection	RS232 (9-way D) to PC and 4x USB ports for keyboard, mouse, memory stick
Ingress Protection Rating	IP20	Technology	Filtration
Operating Pressure	n/a	Sensing Range	Magnetic metal particles in fluid 0 pq to 5000 pq
Product Style	Ferrous debris monitor

Product resources

Compliance, Certifications & Safety

SAFETY}-Marine Monitoring Safety Document--MA-K14365-KW (PDF)

Literature and Reference Materials

MANUAL-ANALEX_pql--MA-K18063-KW (PDF)
