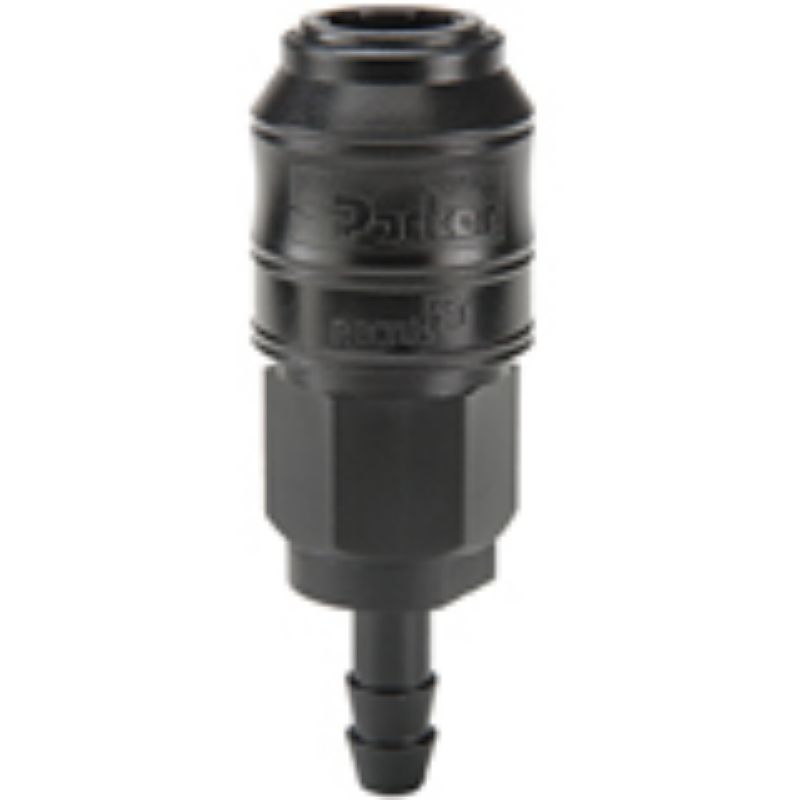

Parker S6-ACV-06-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S6-ACV-06-HB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Pressure	145 psi
Body Material	Acetal	Hex Size	0.82 inch
Seal Material	Nitrile	Minimum Operating Temperature	0 °F
Product Type	Push-to-Connect	Maximum Operating Temperature	180 °F
Valve Type	Poppet	Spring Material	Stainless Steel
Application	Low pressure fluids and gases	Flow Rate	4.5
Connection Type	Hose barb	Connection Tube Inside Diameter	3/8
Body Size (inch)	3/8	Coupling Half	Female Coupler
Connection Thread Size (inch)	na
