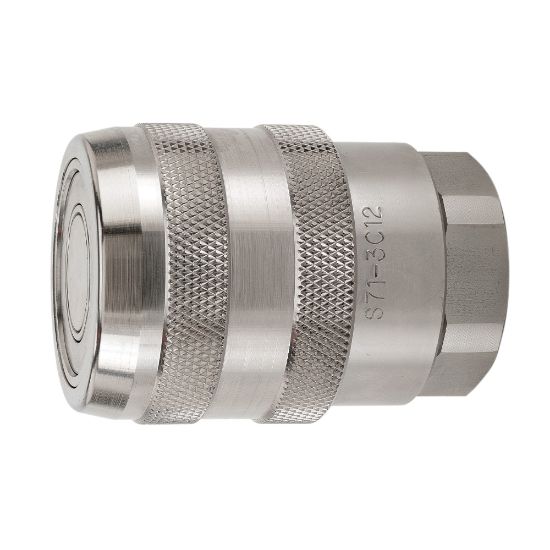

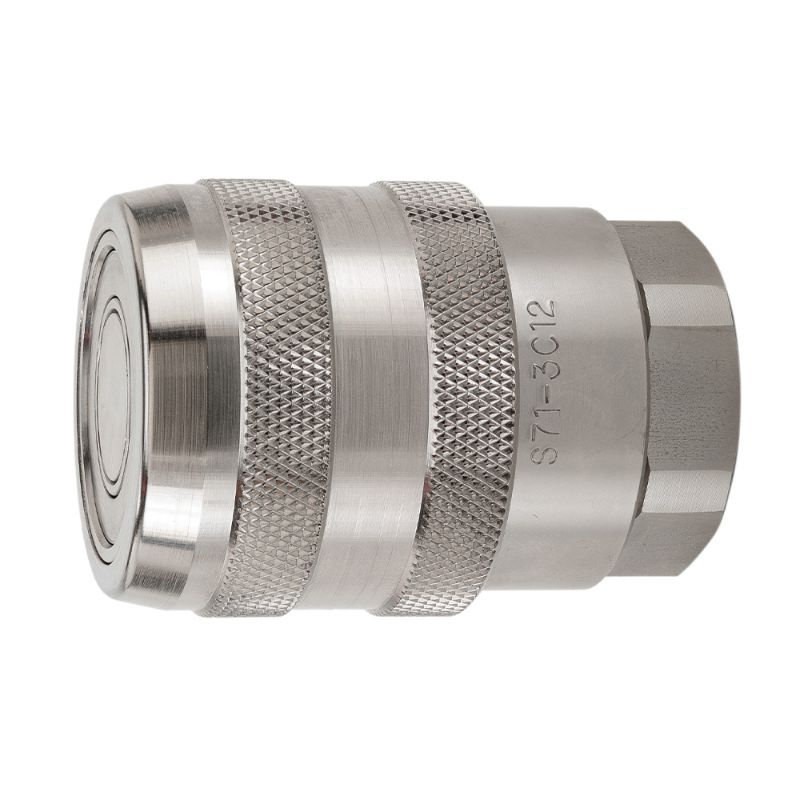

Parker S71-3C16-16FESL - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S71-3C16-16FESL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Hydraulics	Seal Material	Ethlyne Propylene
Plating Type	n/a	Minimum Operating Temperature	-65 °F
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Hex Size	2 inch	Product Type	Push to Connect
Valve Type	Non-spill	Body Material	Stainless Steel
Maximum Operating Pressure	4000	Body Size (inch)	1
Coupling Half	Female Coupler	Connection Type	Female NPSF
Body Material	316 Stainless Steel	Connection Thread Size (inch)	1 - 11 1/2

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
