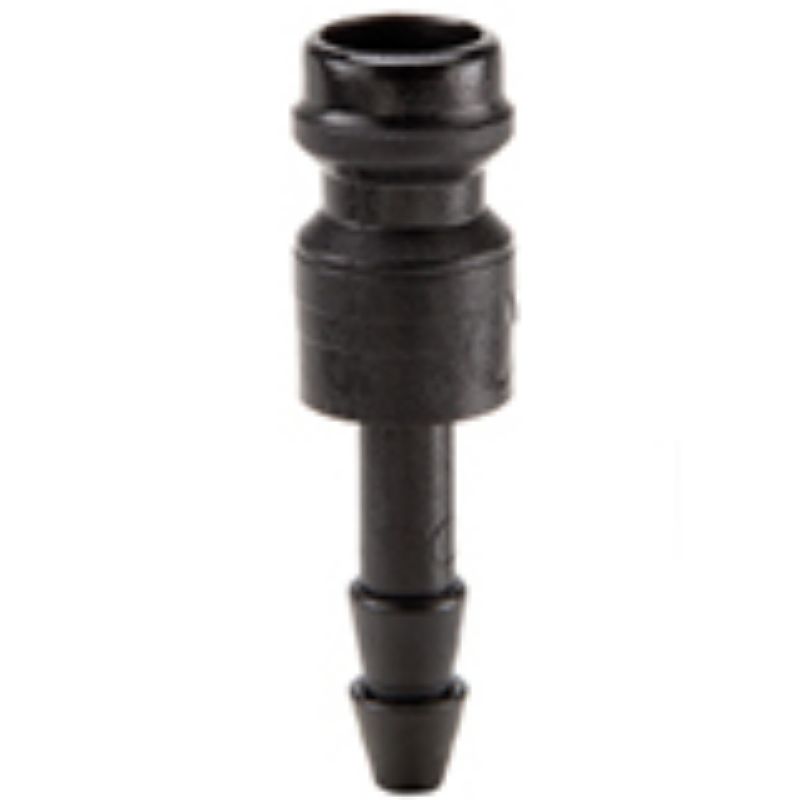

Parker S2-ANS-04-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2-ANS-04-HB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Acetal	Seal Material	Nitrile
Minimum Operating Temperature	0 °F	Maximum Operating Temperature	180 °F
Product Type	Push-to-Connect	Valve Type	Unvalved
Application	Low pressure fluids and gases	Hex Size	na inch
Spring Material	316 Stainless steel	Division	Quick Coupling Division
Maximum Operating Pressure	145 psi	Connection Type	Hose barb
Body Size (inch)	1/8	Flow Rate	1.5
Connection Tube Inside Diameter	1/4	Connection Thread Size (inch)	na
Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
