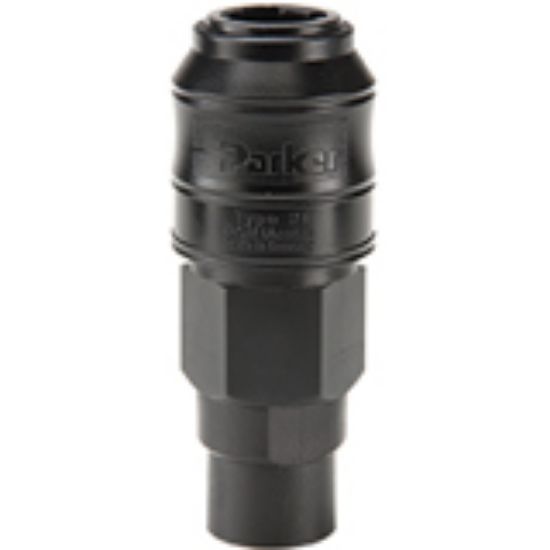

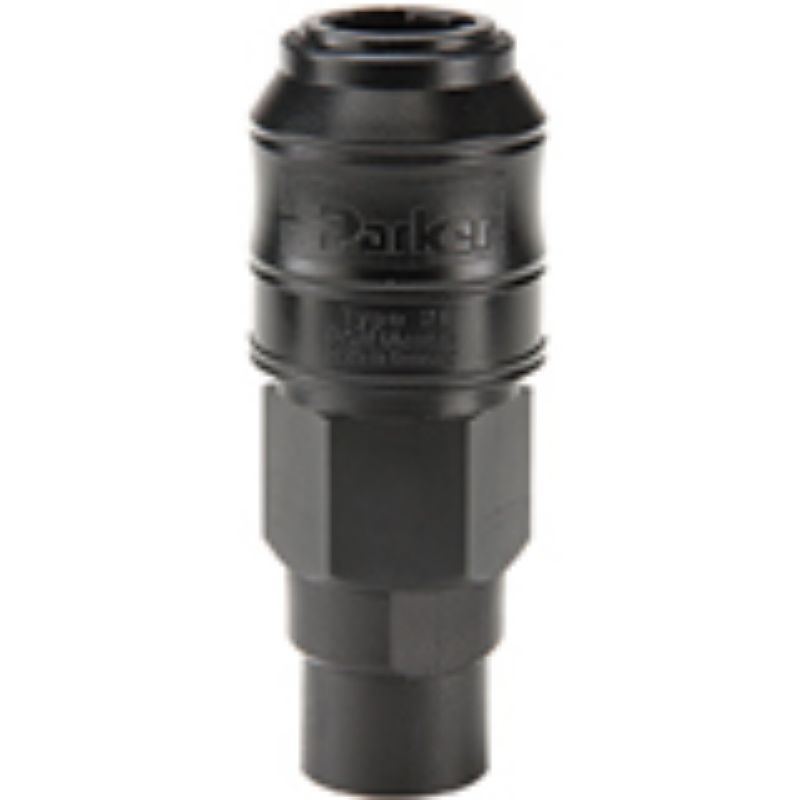

Parker S6-ACV-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S6-ACV-04-FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	0 °F	Hex Size	0.82 inch
Seal Material	Nitrile	Product Type	Push-to-Connect
Spring Material	Stainless Steel	Maximum Operating Temperature	180 °F
Valve Type	Poppet	Maximum Operating Pressure	145 psi
Dimensional Weight	0.045890287769784176 lb	Division	Quick Coupling Division
Body Material	Acetal	Application	Low Pressure Fluids & Gases
Connection Tube Inside Diameter	na	Body Size (inch)	3/8
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
Connection Type	Female NPT	Flow Rate	4.5

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
