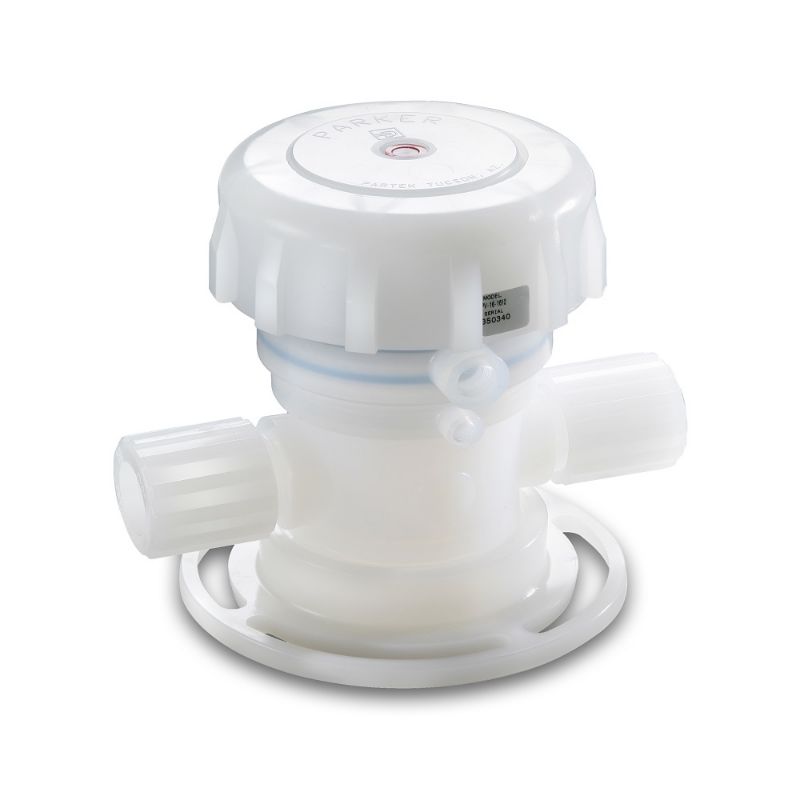

Parker PV-16-1612-01 - UHP PFA Air-operated Diaphragm (3/4 inch) 2 Way Valve – PV-16 Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PV-16-1612-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Non-Wetted Material	PVDF, Viton, PTFE Coated SS Spring	Actuation Pressure	60 psig (4.1 bar) - 120 psig (8.3 bar)
Maximum Ambient Temperature	66	Minimum Fluid Temperature	-17
Wetted Material	PFA, Modified PTFE	Flow Rate	Cv 5.8
Pressure Rating	0-120 psig (8.3 bar)	Maximum Fluid Temperature	130
Division	Veriflo Division	Flow Coefficient	Kv 82.7
Port 2 Size	3/4 Parflare Long	Minimum Ambient Temperature	-17
Overall Length	6.48 (164.59) mm	Port Connection 1 (inch)	3/4 Parflare Long
Actuation	Normally Closed	Nut Material	PVDF
