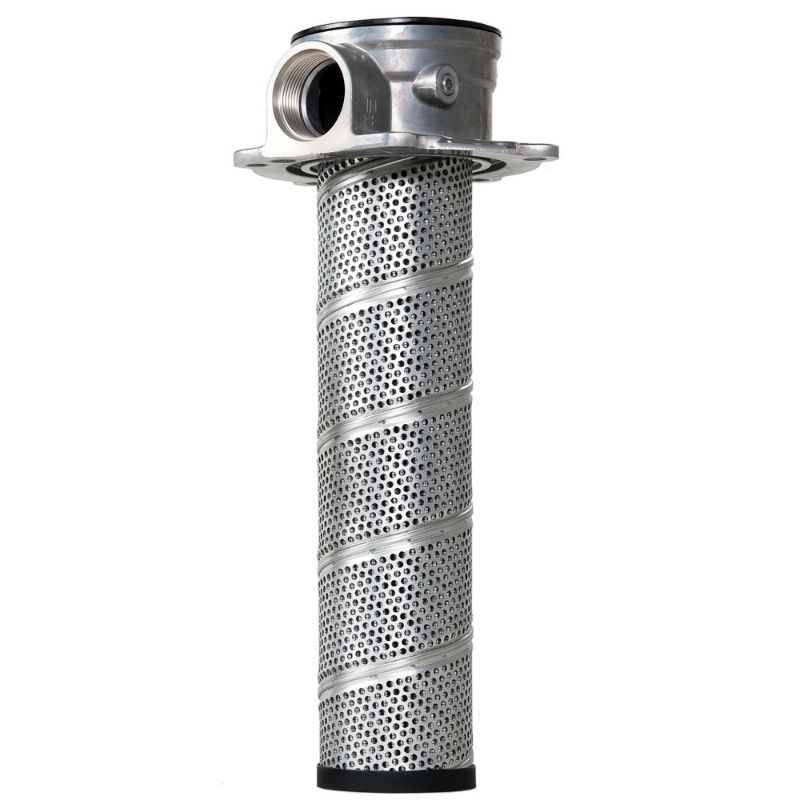

Parker PT4310QBPGG201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4310QBPGG201

$184.60

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Bypass Valve Pressure Rating	25.0
Indicator Type	Plugged ports	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Options	Tank Mounted
Flow Rate	55.0	Weight	2.67
Mounting Style	Tank Mounted	Indicator Pressure Setting	No Indicator
Compatible Element	936878	Filter Element Type	10Q Microglass
Pressure Rating	15	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Maximum Operating Temperature	225.0	Housing Material	Aluminum
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Options	None
Indicator Type	Plugged Ports	Port Connection Type	G1-1/4” BSPP2
Filter Element Type	10Q Microglass	Seal Material	Nitrile
Flow Rate	55 gpm (208.2 lpm)
