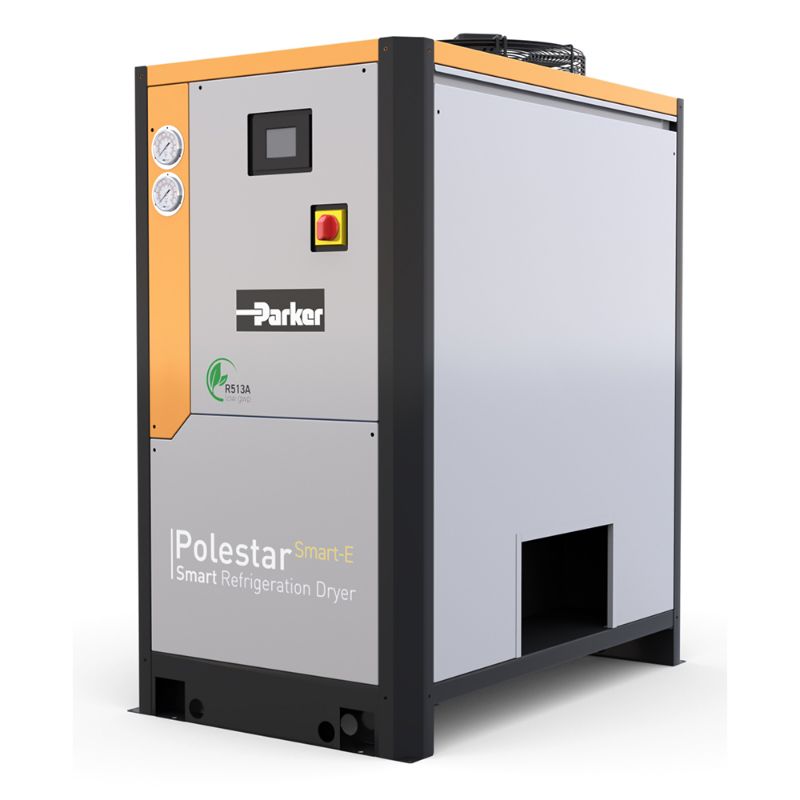

Parker PSE300-A4X03DF14EITS - PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSE300-A4X03DF14EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Power Consumption	3.3 kW (60Hz)	Product Style	Refrigeration
Division	Gas Separation and Filtration Division EMEA	Ingress Protection Rating	IP54 Indoor Use Only
Flow Rate	1941.0 m3/hour at 7 barg, 60Hz	Height	55.5 inch
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air Applications
Operating Temperature	41 to 149 °F	Pressure Dew Point	Standard: 3°C (37°F)<br/>
Technology	Filtration	Refrigerant Type	R513A (Low GWP Refrigerant)
Connection Type	BSPP	Weight	264 kg
Width	27.7 inch	Depth	1150.0 mm
Electrical Requirements	400V 3ph 50Hz / 460V 3ph 60Hz	Ambient Temperature	122.0 °F Maximum
Industry	Industrial Manufacturing Equipment	Product Series	PoleStar Smart-E
Specifications Met	PED 2014/68/EU Fluid Group II	Brand	Parker
Port Size	2-1/2 inch	Operating Pressure	29 to 203 psig
Flow Rate	1800 m³/h @ 7 barg (1059 cfm @ 102 psig) 50 Hz	Cooling Method	Air Cooled
