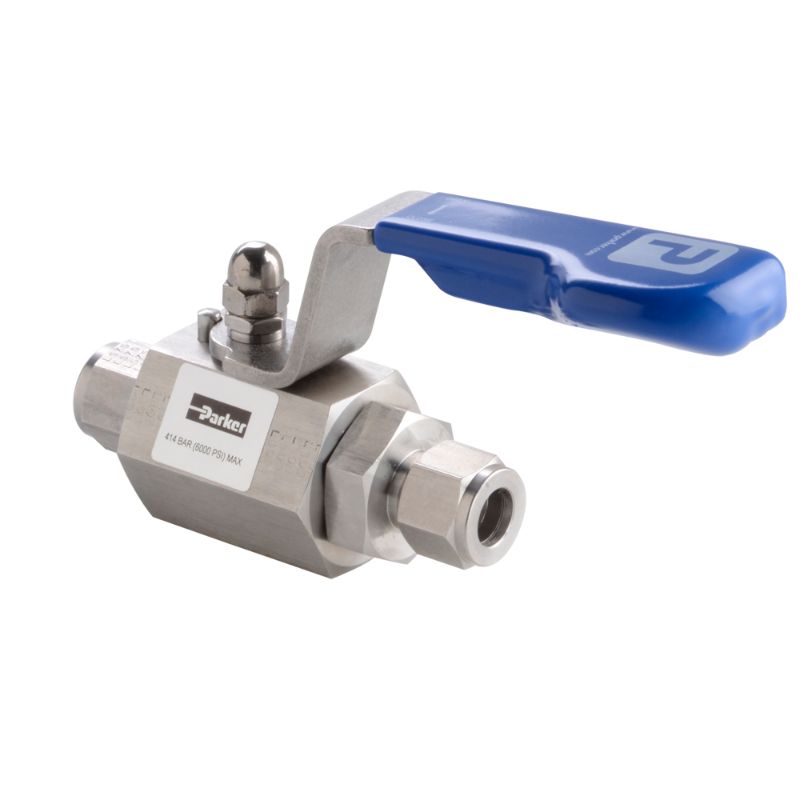

Parker 20KBVS6PH - 20,000 PSI Ball Valve - Hi-Pro Series

Parker's Hi-Pro ball valve is a two piece bi-directional manual ball valve designed for cold working pressure process control applications from 3,600 PSI (247 bar) up to 20,000 PSI (1379 bar) rating, giving continuous repeatable performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20KBVS6PH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	N/A	Minimum Operating Temperature	-20
Maximum Operating Temperature	200	Connection Size	3/8
Maximum Operating Pressure	20000	Materials of Construction	Stainless Steel 316
Connection 2 Size	3/8	Division	Instrumentation Products Division
Seat Material	PEEK	Packing Material	PTFE
Connection 1 Size	Permanent Ferrule-Less	Bore Diameter	5
Connection Size	3/8"	Material	316 Stainless Steel
Packing Material	PTFE	Seat Material	PEEK
Connection 1 Style	Permanent Ferrule-Less Fitting	Connection 2 Style	Permanent Ferrule-Less Fitting
Certificates	N/A	Bore Size (mm)	5 mm
Connection Size 2	3/8"
