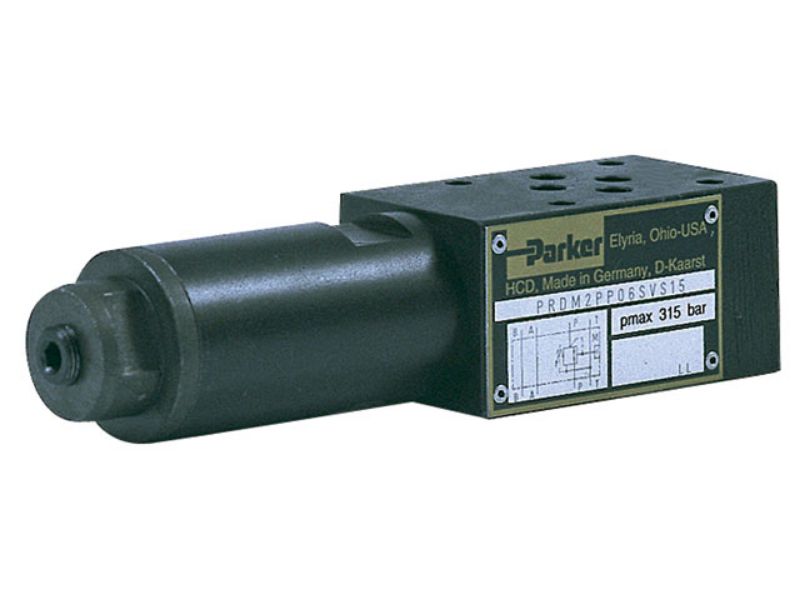

Parker PRDM2BB16SNS - PRDM Series - Pressure Reducing - NFPA D03 (CETOP 3, NG 6)

PRDM Series - Pressure Reducing Parker Manapak Subplate Sandwich Module

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. PRDM2BB16SNS

$656.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Type	Screw
Pkg Qty	1	Seals	Buna-N (Nitrile)
UOM	EA	Pressure Range	44 to 2320 PSI (3 to 160 Bar)
Controlled Ports	B Port	Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)
Gauge Port Size	4 SAE	Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)
Parker Group	Hydraulic	Max Pressure	5000 PSI (350 Bar)
Pressure Range	44 to 2320 PSI (3 to 160 Bar)	Controlled Ports	B Port
Subplate Pattern	NFPA D03 (CETOP 3, NG 6)	Parker Division	Hydraulic Valve
Series	PRDM	Port Size	4 SAE
Seals	Buna-N (Nitrile)	Port Type	SAE
Adjustment Type	Screw

Product resources

Sandwich Valves (PDF)
