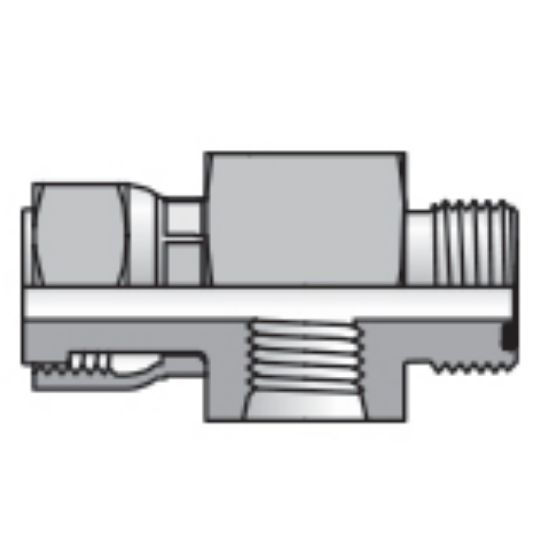

Picture of Parker 12-4 LOHL6G5TP-S - In-Line Diagnostic Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 12-4 LOHL6G5TP-S - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.
Availability:
14 In Stock
Richmond, VA3
Ashland, VA2
Norfolk, VA2
Knoxville, TN2
Knoxville, TN2
Johnson City, TN2
Fayetteville, NC1
Partner Available:122 In Stock
Brand Parker
Part No. 12-4 LOHL6G5TP-S
$90.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Maximum Dynamic Pressure6000 psiDimensional Weight0.19784172661870503 lb
Maximum Static Pressure10000 psiConnection TypeIn-Line Gauge Port Tee
Body MaterialSteelBody MaterialSteel
Connection 2 Thread Size (mm)naConnection 2 Thread Size (inch)na
Connection 1 StyleMale O-ring Face SealConnection 1 Tube O.D. (mm)na
Connection 2 StyleFemale O-ring Face Seal SwivelO-Ring MaterialNBR
Connection 3 StyleFemale SAE-ORB PortConnection 3 Thread Size (inch)7/16-20
Connection 2 Tube O.D. (mm)naConnection 3 Thread Size (mm)na
Connection 1 Tube O.D. (inch)3/4Connection 2 Tube O.D. (inch)3/4
