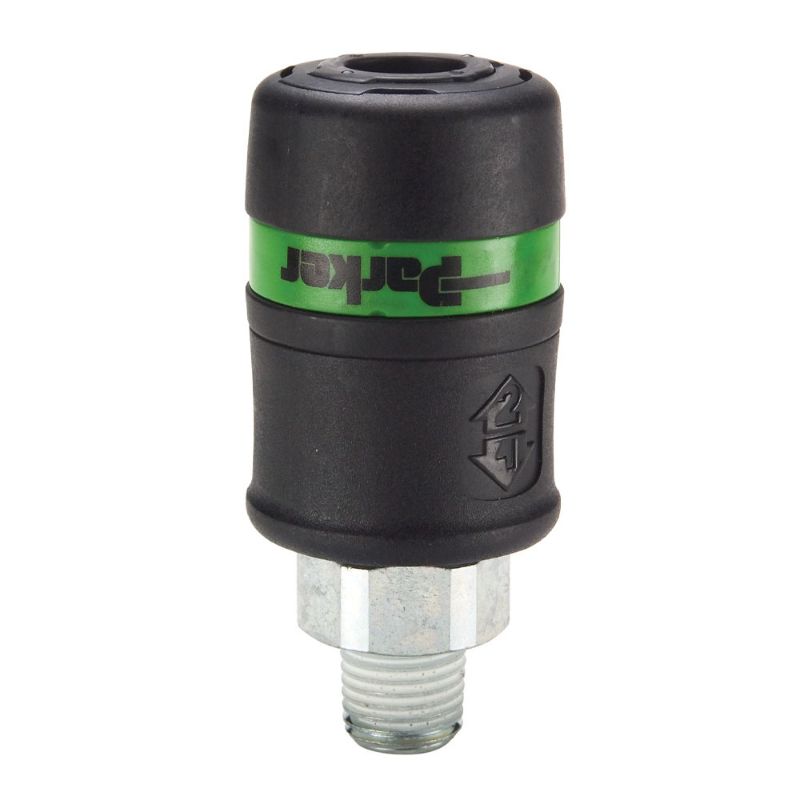

Parker PES-251-4MP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PES-251-4MP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Compressed Air	Valve Type	Tubular
Maximum Operating Temperature	160 °F	Sleeve Type	Push-to-Connect
Dimensional Weight	0.07913669064748201 lb	Lock Type	Polyacetate Locking Fingers
Minimum Operating Temperature	0 °F	Seal Material	Nitrile
Body Material	Polyamide	Special Option	Exhaust - Venting
Specifications Met	ISO 4414 controlled pressure release	Plating Type	Galvanized Steel Port Ends
Maximum Operating Pressure	300 psi	Coupling Half	Coupler
Application	Air	Division	Quick Coupling Division
Interface Option	Connects with RF style nipples	Connection Type	Male, NPTF
Body Size	1/4"	Connection Thread Size	1/4"-18
Thread Style	Male
