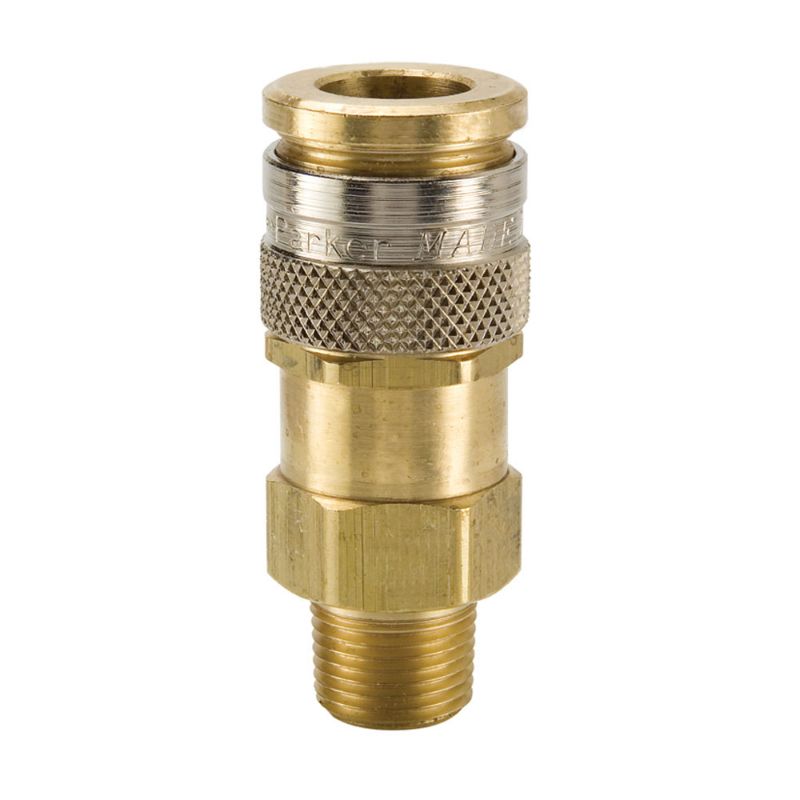

Parker RF-371-6MP - High Flow, Push to Connect, Air Tool & Breathing Air Quick Couplings (pneu) High Flow European Interchange - RF Series Couplers

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RF-371-6MP

Products specifications

Attribute name	Attribute value
Lock Type	Locking balls	Division	Quick Coupling Division
Plating Type	Nickel plating on steel sleeve	Maximum Operating Temperature	250
Media	Low Pressure Fluids	Seal Material	Nitrile
Body Material	Brass	Application	Pneumatic
Maximum Operating Pressure	300	Valve Type	Tubular
Minimum Operating Temperature	-40	Sleeve Type	Push-to-Connect
Coupling Half	Coupler	Specifications Met	Interchanges with Rectus 27 and CEJN 410
Thread Style	Male	Hose I.D.	n/a
Connection Type	Male, NPTF	Body Size	3/8"
Connection Thread Size	3/8"-18

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products (PDF)
