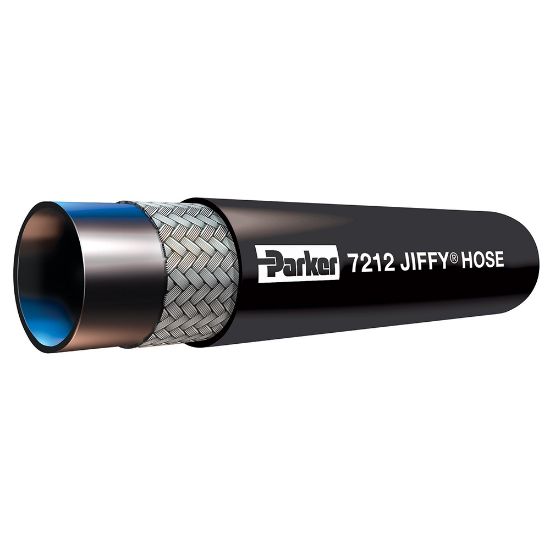

Parker 7212BL38-J100 - JIFFY™ Multipurpose Oil Resistant Push-On Hose Factory Cut Lengths, Series 7212

Jiffy Multipurpose Oil Resistant Push-On Hose Factory Cut Lengths are designed for transfer of air, fuel, mild chemicals, oil and water in applications to 212°F and 300 psi, Series 7212

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7212BL38-J100

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	76 mm	Vacuum Pressure Rating	28 Inch-Hg
Design Factor	4:1	Media	Water
Quantity per Box	5	Application	Air
Cover Color	Blue	Inside Diameter	9.5 mm
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Hose Reinforcement Material	1 Braid of Textile
Specifications Met	MSHA	Package Type	Carton
Maximum Operating Pressure	20.7 bar	Weight	11.5 lb/ea
Outside Diameter	0.600 inch	Maximum Operating Temperature	212 °F (Other Media)
Length	30.48 m	Hose I.D. (inch)	3/8
Cover Color	Blue	Length (ft)	100

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
