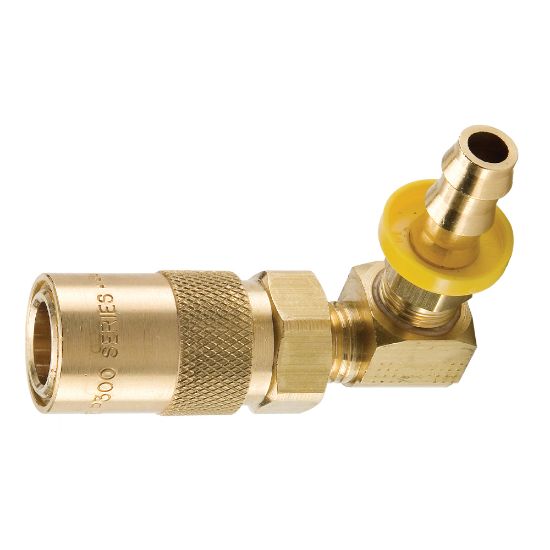

Parker PC214-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PC214-BP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Plating Type	na	Minimum Operating Temperature	-20 °F
Division	Quick Coupling Division	Hex Size	0.63 inch
Product Type	Manual Connect	Application	Hydraulics
Seal Material	Silicone	Dimensional Weight	0.02670863309352518 lb
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	200 psi
Connection Type	Push-Lok hose barb, 90 degree	Body Size (inch)	1/4
Flow Rate	3	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Body Material	BRASS
Connection Hose I.D. (inch)	1/4	Valve Style	Unvalved
