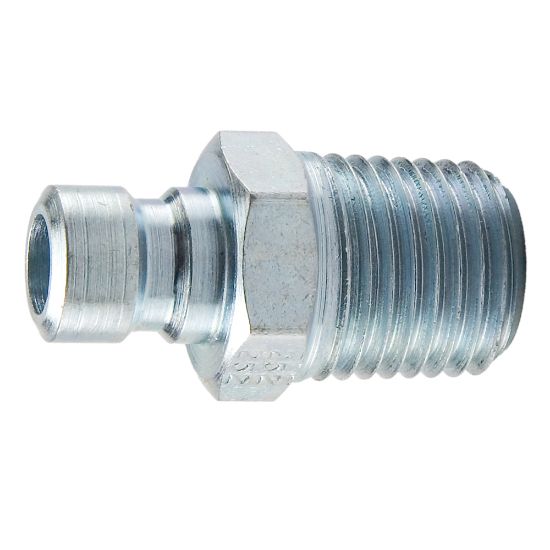

Parker PN353S - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PN353S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	200	Hex Size	0.69
Product Type	Manual Connect	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	400	Minimum Operating Temperature	-20
Seal Material	na	Division	Quick Coupling Division
Application	Hydraulic, mold coolant	Connection Type	Male NPTF
Coupling Half	Male Nipple	Flow Rate	6
Body Material	Steel	Valve Style	Unvalved
Connection Thread Size (inch)	3/8 - 18	Body Size (inch)	3/8
Connection Hose I.D. (inch)	na
