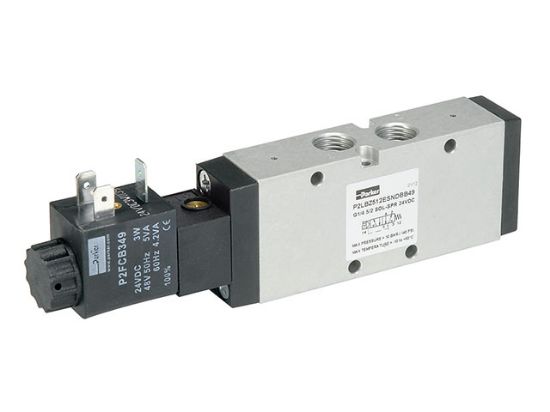

Parker P2LCZ593ESNDBB49 - Viking Lite Series Single Solenoid 4-way 2-position Valve

Single Solenoid, 4-way, 2-position, Spring Return

Availability:	Quote Required
Partner Available:	19 In Stock

Brand Parker

Part No. P2LCZ593ESNDBB49

$94.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port	3/8 NPT
Operator Type Detail	Single	Offset Return Type	Spring Return
Solenoid Voltage	24VDC	UOM	EA
Override Type	Non-locking	CV Factor	2.5
Pkg Qty	1	Pilot Supply	Internal
Parker Division	Pneumatic	Operator Type	Solenoid
Port Inch/BSP	NPT	Offset Return Type	Spring Return
Operator Type Detail	Single	Solenoid Voltage	24VDC
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Trade Name	Viking Lite
Port	3/8 NPT	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Pneumatic Valve Type	Inline Valve	Series	Viking Lite
Override Type	Non-locking	Pilot Supply	Internal
Parker Group	Automation	Valve Passages	4-way
CV Factor	2.5	Supply Pressure Range	43.5 to 145 PSIG (3 to 10 bar)
Valve Positions	2-position
