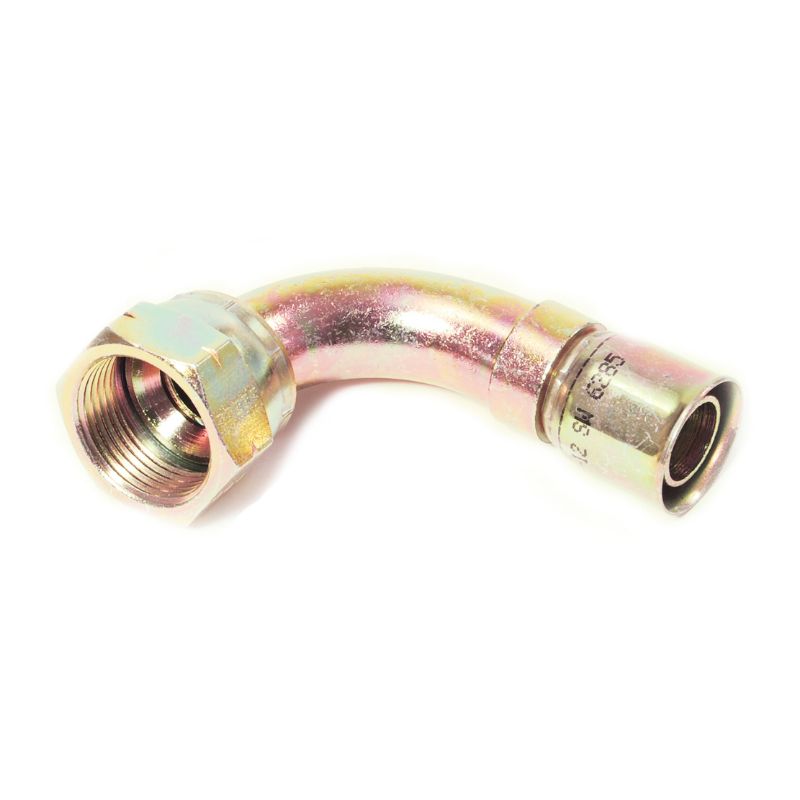

Parker 17991N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 17991N-12-12 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 17991N-12-12
Price: 102.90 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

24 In Stock

North Chesterfield, VA	12
Richmond, VA	3 (Pickup only)
Ashland, VA	2 (Pickup only)
Fayetteville, NC	2
Johnson City, TN	2 (Pickup only)
East Knoxville, TN	2
Norfolk, VA	1

Partner Available:

29 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 17991N-12-12

$102.90/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 1 Size	5/8 inch Hose I.D.
Hex Size	n/a	Coating	Chromium 6 Free-plated
Connection Length	2-1/8 inch Cut-off allowance (see drawing legend B)	Body Material	Steel
Connection 2 Type	45° Flare SAE Swivel	Shape	Elbow 90°
Division	Parflex Division	Application	Tools & Equipment
Product Type	Hose Fittings	Hex Size 1	1-1/4 inch (see drawing legend H)
Tube Outside Diameter	n/a	Connection 1 Type	Hose
Specifications Met	n/a	Maximum Operating Pressure	20.7 MPa
Brand	Parker	Industry	Semiconductor
Product Series	91N	Connection 2 Size	1-1/16"-14 inch Thread
Fitting Length	2.92 inch (see drawing legend A)	Configuration	Hose to Port
Dimensional Weight	0.2317 lb	For Fluid Type	Water
Hose I.D. (inch)	0.625"	Connection 2 Size	1-1/16"-14
Length (inch)	2.92"	Product Style	Female SAE 45 / Swivel - 90° Elbow
