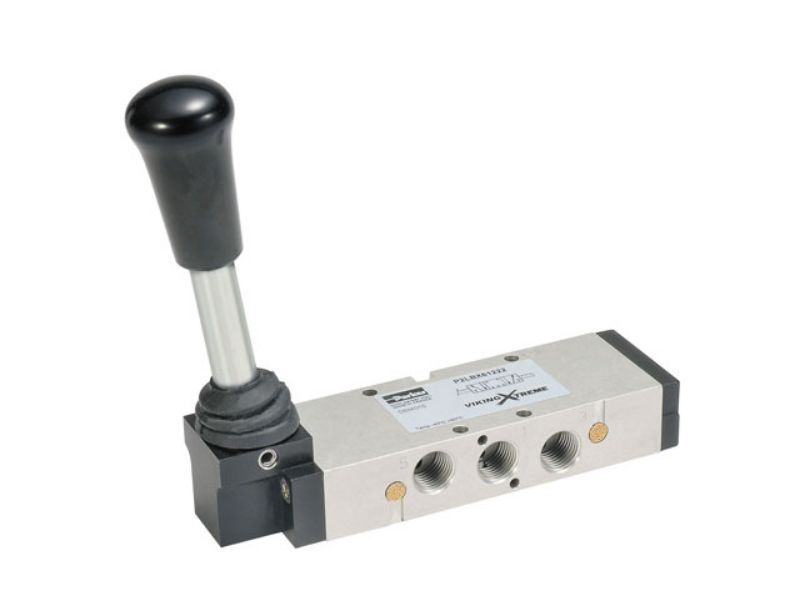

Parker P2LAX61111 - Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever

Viking Xtreme Series Manual/Mechanical Valve - 4-way 3-position Inline Perpendicular Lever

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P2LAX61111

$147.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port	1/8 BSPP
Offset Return Type	Spring Return	Operator Type Detail	Inline Perpendicular Lever
CV Factor	0.6	Pkg Qty	1
Center Condition	All Ports Blocked	UOM	EA
Port Inch/BSP	BSPP	Port	1/8 BSPP
Offset Return Type	Spring Return	Pneumatic Valve Type	Manual/Mechanical
Center Condition	All Ports Blocked	CV Factor	0.6
Operating Temperature	-40°F to 140°F (-40°C to 60°C)	Operator Type	Manual/Mechanical
Parker Division	Pneumatic	Valve Positions	3-position
Operator Type Detail	Inline Perpendicular Lever	Parker Group	Automation
Supply Pressure Range	Vacuum to 232 PSI (Vacuum to 16 bar)	Valve Passages	4-way
Series	Viking Xtreme
