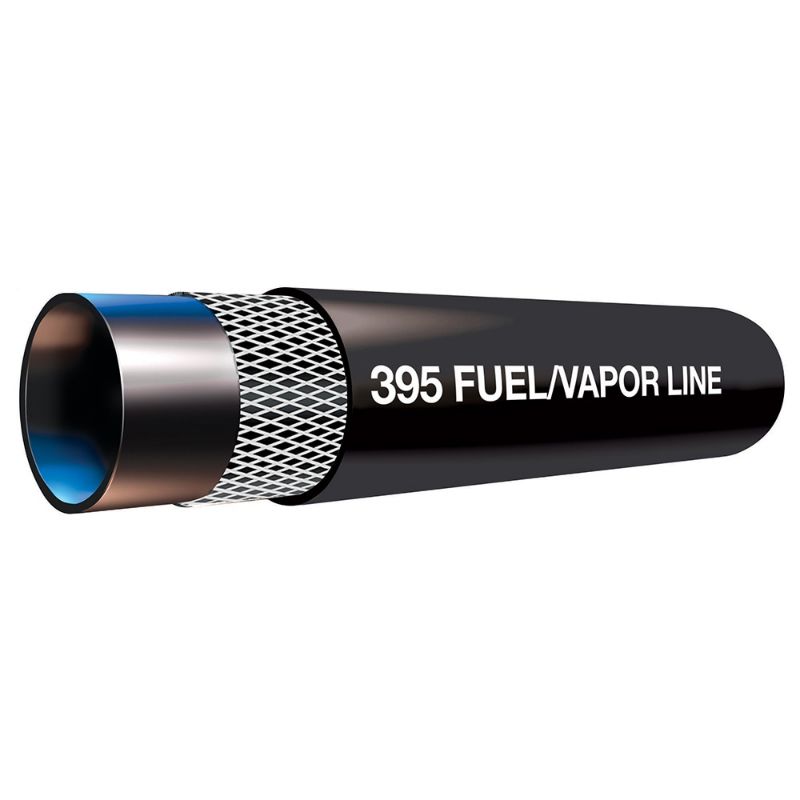

Parker 39552 - Fuel Line/Vapor Emission Hose, Series 395

Name: Parker 39552 - Fuel Line/Vapor Emission Hose, Series 395
SKU: 39552
Price: 2.13 USD
Availability: InStock

Fuel Line/Vapor Emission Hose is designed for engine fuel supply and vapor emission containment in applications to 257°F and 75 psi, Series 395

AFP Availability:

48 In Stock

Norfolk, VA

Partner Available:

1823 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 39552

$2.13/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Pressure	50 psi
Weight	0.06 kg	Inside Diameter	3/8 inch
Cover Structure	Smooth	Outside Diameter	0.625 inch
Application	Specialty	Minimum Operating Temperature	-40 °C
Cover Material	Chloroprene Rubber (CR)	Length per Package	250 ft
Hose Reinforcement Material	2 Plies of Textile	Specifications Met	SAE 30R7
Minimum Bend Radius	3.5 inch	Hose Inner Tube Material	Nitrile
Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Package Type	Coil
Vacuum Pressure Rating	24 Inch-Hg	Cover Color	Black
Division	Hose Products Division	Maximum Operating Temperature	125 °C
Hose I.D. (inch)	3/8	Maximum Working Pressure (psi)	50

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
