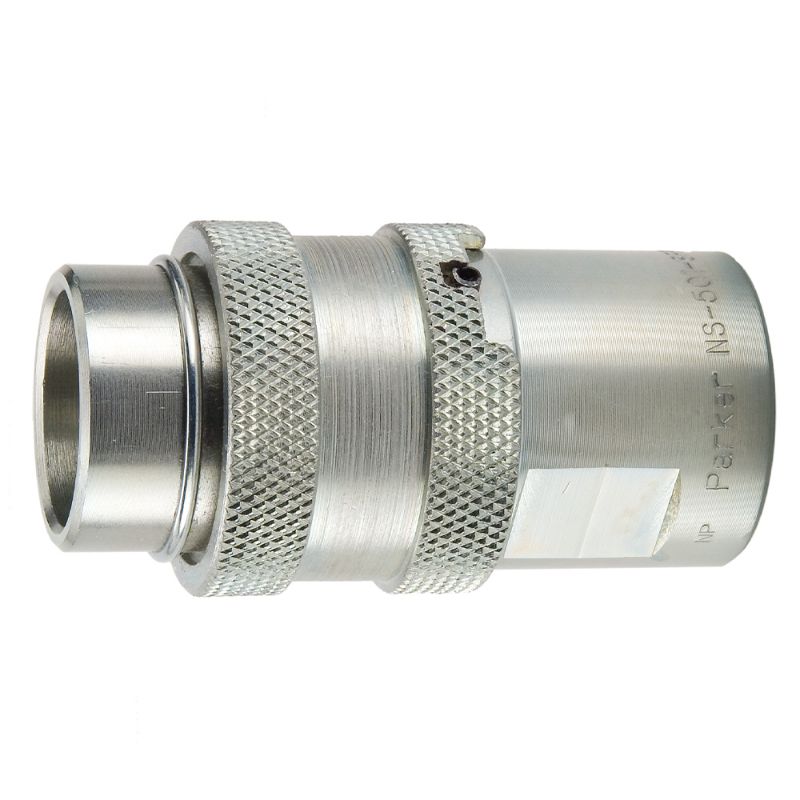

Parker NS-751-12FP - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series

Name: Parker NS-751-12FP - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series
SKU: NS-751-12FP
Price: 193.59 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

AFP Availability:

36 In Stock

Jacksonville, FL	17
Richmond, VA	15
Richmond, VA	2 (Pickup only)
Norfolk, VA	2

Partner Available:

43 In Stock

Brand Parker

Part No. NS-751-12FP

$193.59/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Hex Size	1.56 inch
Application	Hydraulics	Flow Rate	30 Gal/min
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Pressure	2500 psi
Locking Sleeve Included	Yes	Product Type	Push to Connect
Seal Material	Nitrile	Dimensional Weight	0.22945143884892086 lb
Valve Type	Non-spill	Connection Thread Size (inch)	3/4 - 14
Connection Type	Female NPSF	Coupling Half	Female Coupler
Body Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
