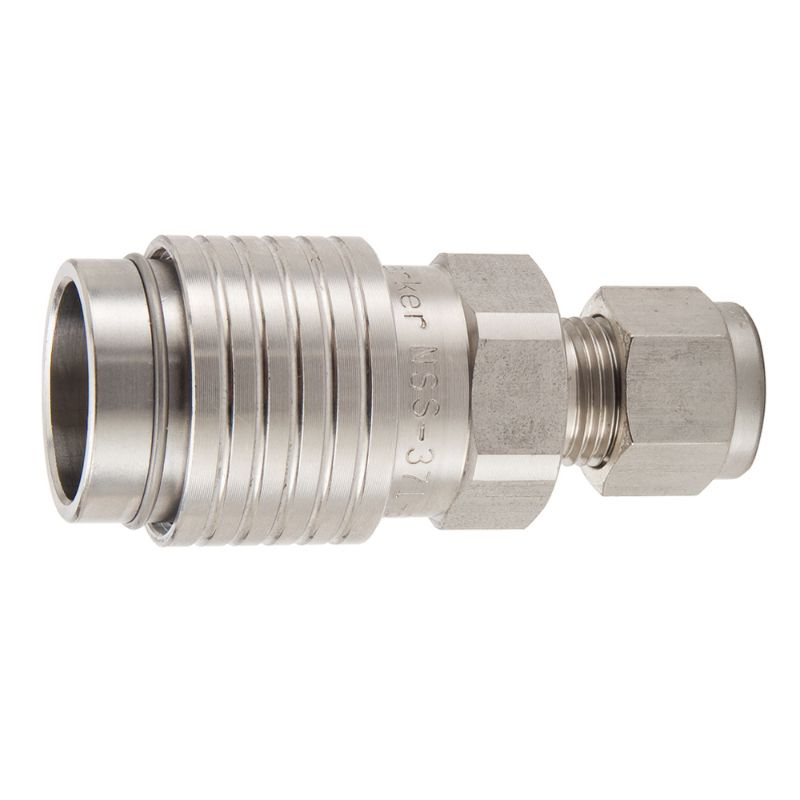

Parker NSS-371-8MA - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NSS-371-8MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000	Flow Rate	10
Hex Size	0.88	Valve Type	Flat Face
Product Type	Push-to-Connect	Minimum Operating Temperature	-70
Connection Type	Female Thread	Application	Thermal Management
Seal Material	EPDM	Division	Quick Coupling Division
Body Material	Stainless Steel	Maximum Operating Temperature	250
Connection Thread Size (inch)	1/2 A-Lok	Coupling Half	Female Coupler
Body Size (inch)	3/8	Hose I.D.	NA

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
