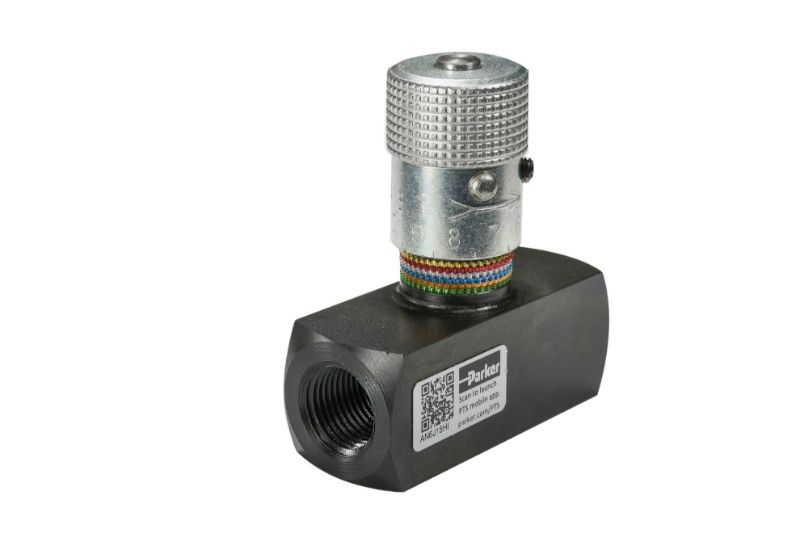

Parker 9N1600B-V - Colorflow In-Line General Purpose Needle Valve – N Series

Parker's Colorflow N series hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9N1600B-V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Brass	Mounting Type	Inline
Maximum Operating Temperature	400 °F	Seal Material	Fluorocarbon
Maximum Operating Pressure	500 psi	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-15 °F	Actuation Type	Manual
Connection Type	BSPP	Brand	Colorflow
Media	Oil	Maximum Flow Rate	40 Gal/min
Product Style	Needle Valve	Body Material	BRASS
Seal Material	Fluorocarbon	Connection Type	BSPP
Maximum Operating Pressure	500	Actuation Type	Manual
Minimum Operating Temperature	-15	Maximum Flow Rate	40
Knob Option	Standard Knob	Connection Size	1
Maximum Operating Temperature	+400° F	Needle option	Standard
