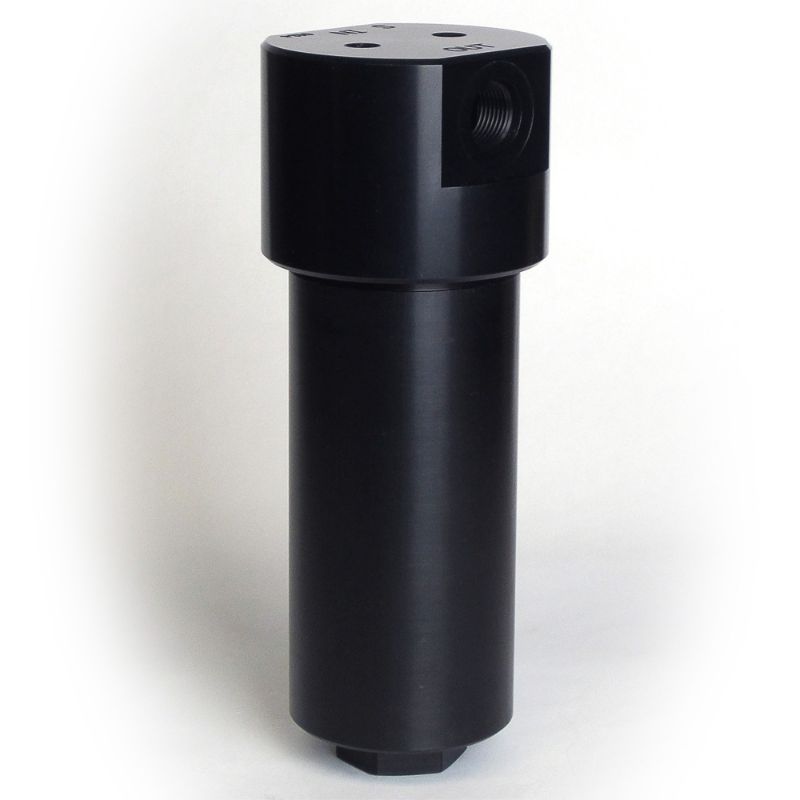

Parker FFC-213-10 - Compressed Air & Gas Filter - Up to 3600 PSIG - FFC-213

Finite's Inline compressed air and gas FFC-213 filter series is used onboard heavy duty truck and bus CNG(Compressed Natural Gas) powered vehicles.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FFC-213-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Plating Type	Anodized	Seal Material	Fluorocarbon
Compatible Element	DLS113-10K	Width	3.25 inch
Application	CNG onboard	Maximum Operating Temperature	221 °F
Bowl Type	Aluminum 6061-T6	Head Material	Aluminum 6061-T6
Maximum Operating Pressure	248 barg	Weight	3.5 lb
Brand	Finite	Height	8.43 inch
Optional Accessories	No Accessories	Drain Port Size	SAE 6
Division	Industrial Gas Filtration and Generation Division	Thread Type	NPTF
Filter Rating (%)	95	Maximum Flow Rate (cfm)	61 to 1922
Port Connection (inch)	1/2	Filter Type	Coalescing
Micron Rating (µm)	1
