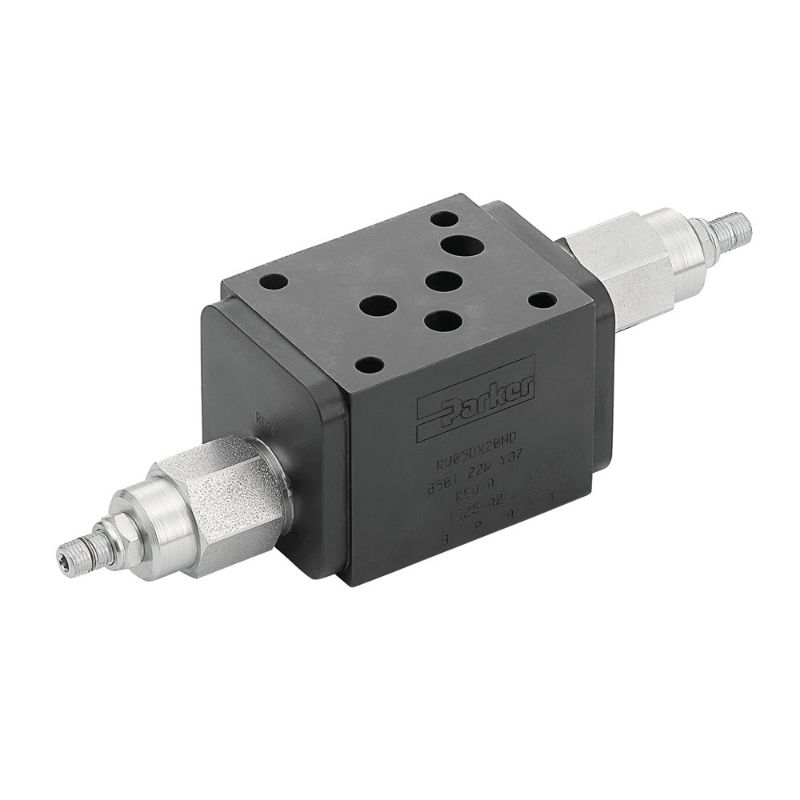

Parker RV05BT20ND - Pressure Relief Sandwich Valve – RV Series

Parkers RV series direct acting, pressure relief valves are designed to limit pressure in various parts of a hydraulic circuit.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RV05BT20ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Maximum Operating Pressure	5000	Allowable Circuit Leakage	10 DPM
Minimum Operating Temperature	-4	Seal Material	Nitrile
Maximum Flow Rate	50	Product Style	Pressure Relief Valve
Body Material	Ductile Iron	Maximum Operating Temperature	+176
Weight	4.8	Division	Hydraulic Valve Systems Division
Media	Oil	Filter Efficiency Rating	ISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Pressure Range (psi)	1000 to 6000	Port Connection	B to T
Size	NFPA D05; CETOP 5; NG10
