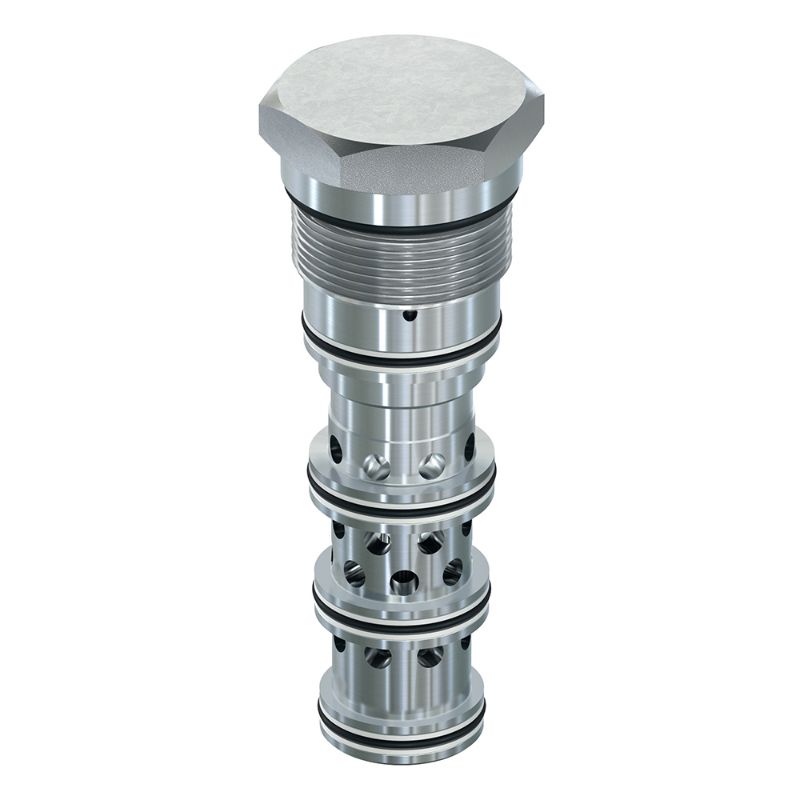

Parker N5A300-6.9V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5A300-6.9V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Switching Pressure	6.9 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Maximum Operating Pressure	420 bar	Weight	2.2 lb
Maximum Inlet Pressure Rating	6000 psi	Flow Rate	400 L/min
Maximum Flow Rate	400 L/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+400 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Direction	2-3 Neutral, 3-4 Piloted	Cavity Size	100-1
Configuration	Open Transition	Actuation Type	Switching
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	Installation Torque	160 Nm
Standard Flow Rate Setting	71 Gal/min	Seal Material	Fluorocarbon
Switching Pressure	100 PSI, 6.9 BAR	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Open Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN
