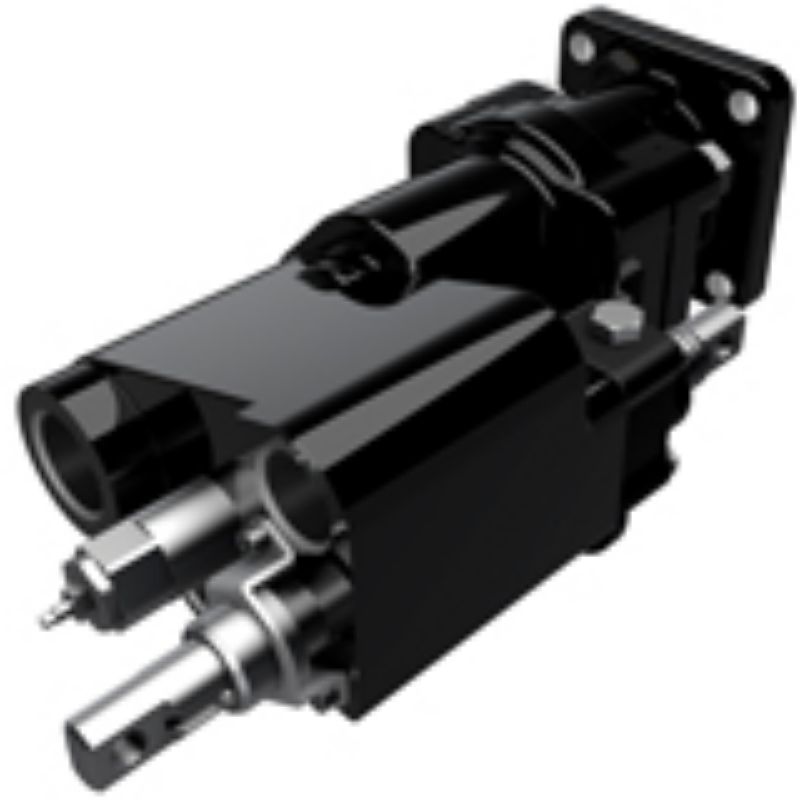

Parker 3189111003 - Cast Iron Pumps – SG102 Series

The SG102 is a mid-size dump pump with a large C series dump valve that provides increased dump cycle time compared to a traditional G series dump pump.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3189111003

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Connection	NPT	Filter Included	No
Flow Rate	n/a	Division	Pump & Motor Division
Media	n/a	Pump Type	Gear
Circuit Path	Open	Drain Option	No
Body Material	Cast Iron	Configuration	Single
Control Method	n/a	For Fluid Type	Phosphate-ester
Mounting Option	SAE	Maximum Flow Rate	n/a
Operating Pressure	up to 2500 psi	Maximum Noise Level	n/a
Charge Pump Included	No	Radial Load Capacity	n/a
Maximum Operating Speed	2400 RPM	Maximum Fluid Temperature	80 °C
Minimum Fluid Temperature	-20 °C	Energy Recovery Capability	No
Maximum Operating Pressure	2500 psi	Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS	Weight	55.5 lb (Max)
Displacement	up to 80.8 cm3/rev	Maximum Displacement	80.8 cm3/rev
Rotation	CW	Configuration	4-BOLT DIN FLANGE
Mounting Option	Direct Mount w/ Air Shift Installed
