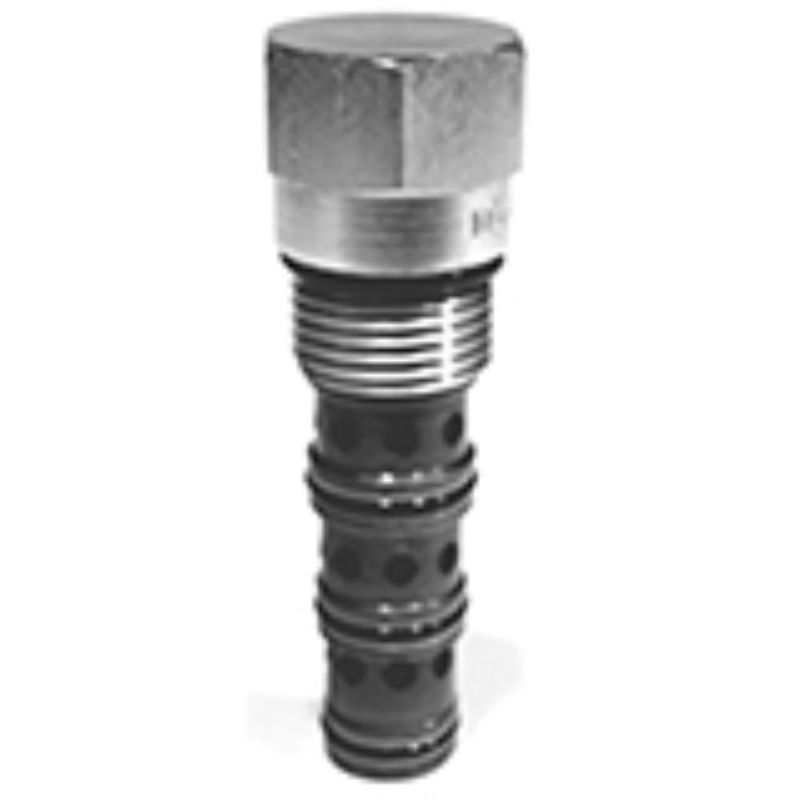

Parker R04B4-10.0N - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04B4-10.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-34 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Pilot Operated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	6000 psi	Cavity Size	C10-4
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Weight	0.37 lb
Actuation Type	Pilot to Open	Operating Temperature	-34 to +121 °C
Sealed Pilot Included	No	Pilot Location	External
Configuration	Normally Closed	Maximum Inlet Pressure Rating	420 bar
Division	Mobile Hydraulic Systems Division Europe	Flow Direction	2-3 or 3-2
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Diverter
Standard Flow Rate Setting	12 Gal/min	Valve Material	All parts steel. All operating parts hardened steel
Switching Pressure	145 psi	Installation Torque	50 Nm
Body Material	n/a	Maximum Flow Rate	80 L/min
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	+121 °C
Drain Option	External	Seal Material	Nitrile
Flow Rate	21 Gal/min	Switching Pressure	145 PSI, 10 BAR
Sealed Pilot Included	No	Seal Material	Nitrile
Flow Rate	21 GAL/MIN, 80 L/MIN	Configuration	Normally Closed
