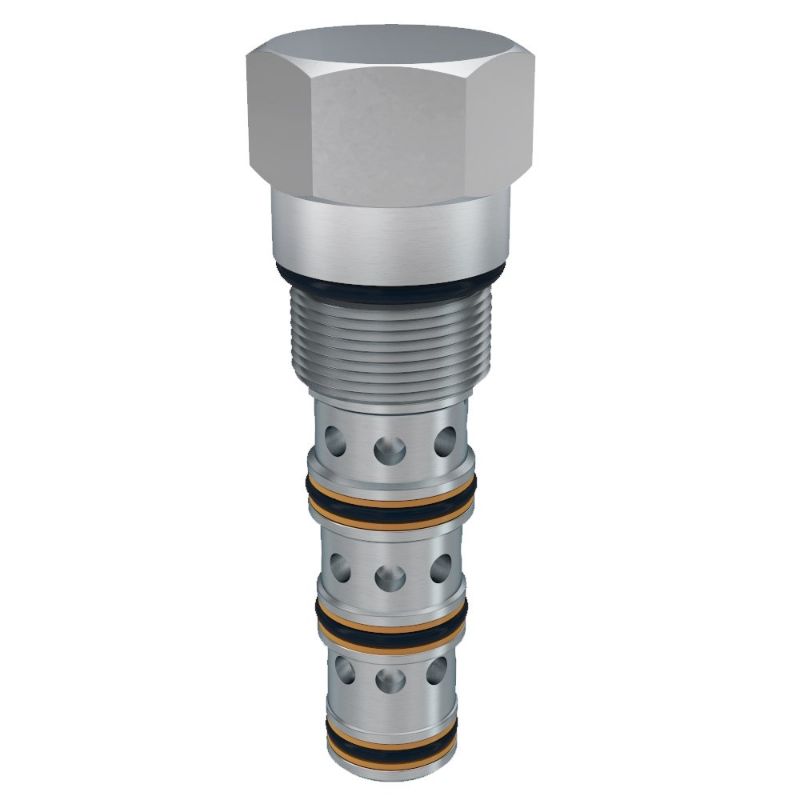

Parker R04A4-10.0N - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04A4-10.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Diverter	Configuration	Normally Open
Standard Flow Rate Setting	12 Gal/min	Switching Pressure	145 psi
Actuation Type	Pilot to Close	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	50 Nm	Drain Option	External
Body Material	n/a	Maximum Flow Rate	80 L/min
Weight	0.17 kg	Seal Material	Nitrile
Maximum Operating Temperature	+121 °C	Flow Rate	21 Gal/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	6000 psi
Minimum Operating Temperature	-34 °C	Operation Type	Pilot Operated
Cavity Size	C10-4	Operating Temperature	-34 to +121 °C
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Pilot Location	External
Sealed Pilot Included	No	Division	Mobile Hydraulic Systems Division Europe
Maximum Inlet Pressure Rating	420 bar	Flow Direction	2-3 or 3-2
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	21 GAL/MIN, 80 L/MIN
Configuration	Normally Open	Switching Pressure	145 PSI, 10 BAR
Sealed Pilot Included	No	Seal Material	Nitrile
