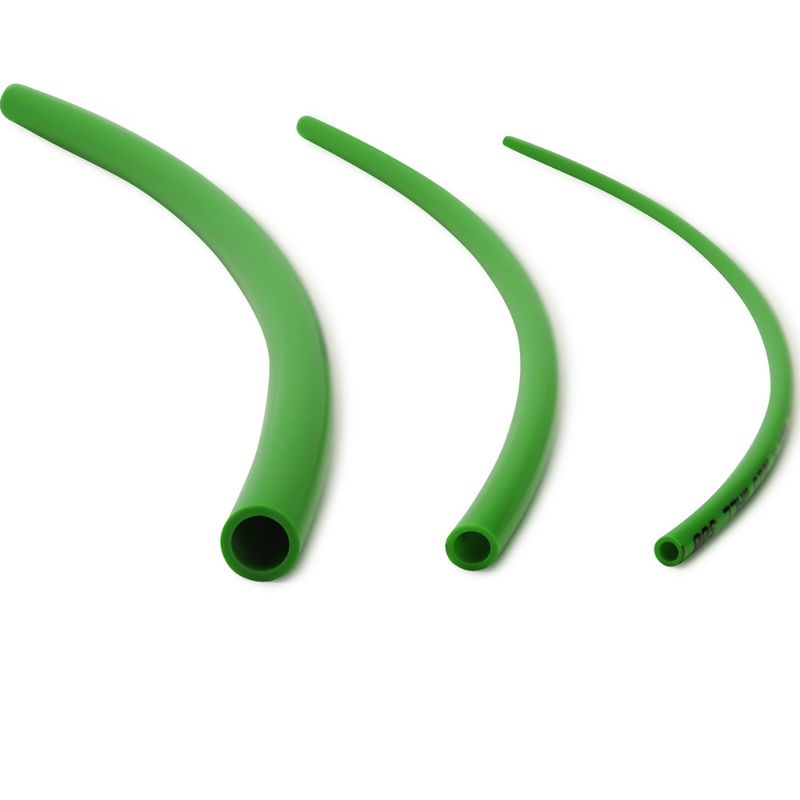

Parker N-6-050-GRN - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N-6-050-GRN

$2.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Weight	0.034 kg/m
Tube Material	Polyamide (PA)	Tube Outside Diameter	3/8 inch
Length per Package	76.2 m	Maximum Operating Pressure	250 psi
Color	Green	Application	Robotics
Minimum Operating Temperature	-54 °C	Specifications Met	n/a
Minimum Bend Radius	1.13 inch	Cover Material	n/a
Media	Lubricants	Size	-6
Minimum Burst Pressure	69 bar	Compatible Fitting	Flow Controls
Tube Inside Diameter	0.275 inch	Maximum Operating Temperature	93 °C
Division	Parflex Division	Order Size	3/8
Standard Pack Qty (ft)	250	Color	Green
