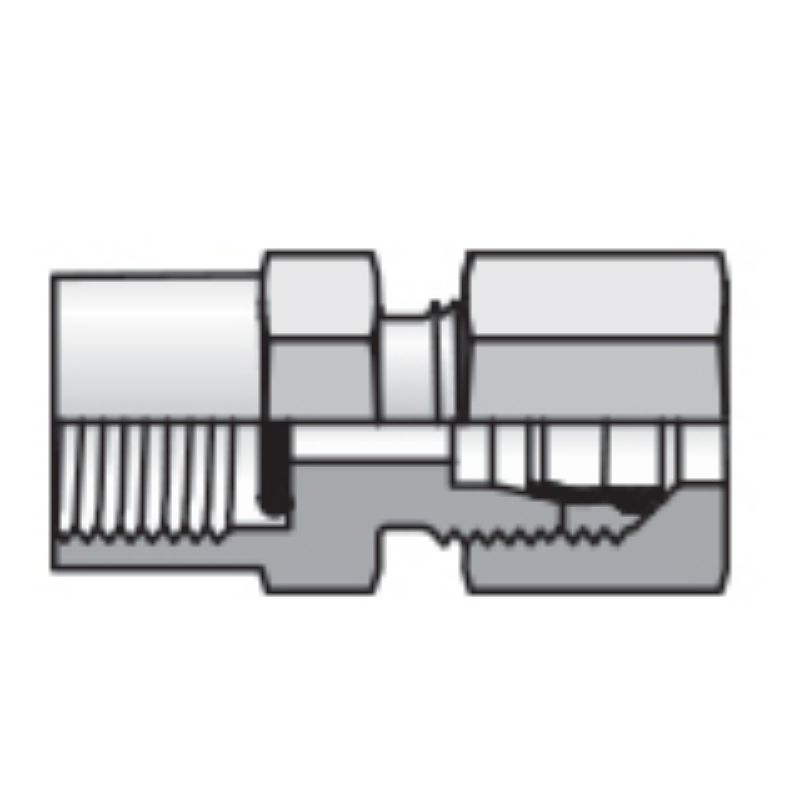

Parker MAV12SRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MAV12SRCF

$26.62

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	BSPP Pressure Gauge Adapter
Maximum Dynamic Pressure	9100 psi	Maximum Static Pressure	9100 psi
Division	Tube Fittings Division	Body Material	Steel
O-Ring Material	NBR	Connection 3 Thread Size (mm)	na
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (mm)	na	Connection 1 Tube O.D. (mm)	12S
Connection 3 Style	na	Connection 2 Tube O.D. (mm)	na
Connection 1 Tube O.D. (inch)	na	Connection 2 Style	Female BSPP with Sealing Washer
Body Material	Steel	Connection 2 Thread Size (inch)	1/2-14
Connection 1 Style	Male 24° Metric Flareless with Nut and Ferrule

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
