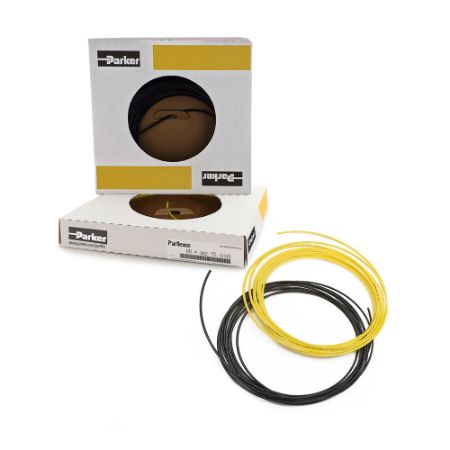

Nylon Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flexible Nylon Tubing uses high-grade polyamide resins for strength and flexibility for routing in tight spaces. It is made from abrasion-resistant, heat and light-stabilized nylon that is available in natural or black tubing. The black tubing is suggested for use in sunlit areas and in close proximity to high ultraviolet (UV) light sources. Nylon plastic tubing exhibits a low-level water absorption and is chemically resistant, making it the optimal solution for machine tool and industrial pneumatic applications, such as robotics, lubrication, petroleum-based chemical transfer and pest control lines. Parflex Nylon Tubing is available in fractional inch and metric sizes.

Markets:
• Robotics< br/>• Automation< br/>• Industrial Pneumatics
• Machine Tool
• Lubrication
• Petroleum based chemical transer
• Pest Control< br/>• Fluid Handling

Features/Benefits:
• Flexible nylon tubing uses high-grade resins for strength and flexibility for routing in tight spaces
• Made from abrasion-resistant, heat and light-stabilized polyamide resin
• Exhibits low-level water absorption
• Chemically resistant tubing

Applications:
• Robotics
• Machine tool
• General pneumatics
• Lubrication
• Petroleum-based chemical transfer
• Pest control lines

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur
• The recommended operating temperature range for service at rated pressures with compatible fluids, depending upon conditions, is -54°C to +93°C (-65°F to +200°F)
• Black UV resistant tubing suggested for use in sunlit areas and in close proximity to high ultraviolet light sources
• Select sizes available in 100 ft boxes

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Application	Maximum Operating Pressure	Tube Inside Diameter	Minimum Burst Pressure	Tube Outside Diameter	Minimum Bend Radius	Length per Package	Size	Maximum Operating Temperature	Specifications Met	Color	Cover Material	Tube Material	Weight	Compatible Fitting	Media	Division	Minimum Operating Temperature	Order Size	Color	Standard Pack Qty (ft)
N-2.5-025-BLU	Quote Required	1275 In Stock	$0.51/foot	FT	Lubrication	20.7 bar	2.7 mm	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Blue	n/a	Polyamide (PA)	0.007 kg/m	NTA®	Hydraulic Fluids	Parflex Division	-54 °C	5/32	Blue	250
N-2.5-025-GRN	Quote Required	129 In Stock	$0.51/foot	FT	Pneumatics	20.7 bar	0.106 inch	1200 psi	5/32 inch	0.5 inch	76.2 m	-2.5	93 °C	N/A	Green	n/a	Polyamide (PA)	0.007 kg/m	NTA®	Hydraulic Fluids	Parflex Division	-54 °C	5/32	Green	250
N-2.5-025-RED	Quote Required	150 In Stock	$0.51/foot	FT	Machine Tools	20.7 bar	2.7 mm	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Red	n/a	Polyamide (PA)	0.005 lb/ft	Hi-Duty	Air	Parflex Division	-54 °C	5/32	Red	250
N-2.5-025-YEL	Quote Required	98 In Stock	$0.51/foot	FT	Fluid Transfer	300 psi	0.106 inch	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Yellow	n/a	Polyamide (PA)	0.005 lb/ft	Prestolok®	Lubricants	Parflex Division	-54 °C	5/32	Yellow	250
N-2-016-RED	Quote Required	Quote Required	TBD	FT	Pneumatics	250	0.093	1000	1/8	4.6	250	-2	200	N/A	Red	n/a	Polyamide (PA)	0.003	Compression	Air	Parflex Division	-54	1/8	Red	250
N-4-035-BLU	250 In Stock	1532 In Stock	$1.09/foot	FT	Fluid Transfer	250 psi	0.180 inch	69 bar	1/4 inch	0.88 inch	76.2 m	-4	93 °C	N/A	Blue	n/a	Polyamide (PA)	0.011 lb/ft	NTA®	Chemicals	Parflex Division	-54 °C	1/4	Blue	250
N-4-035-GRN	Quote Required	990 In Stock	$1.09/foot	FT	Pneumatics	17.2 bar	0.180 inch	1000 psi	6.4 mm	0.88 inch	250 ft	-4	200 °F	N/A	Green	n/a	Polyamide (PA)	0.016 kg/m	TrueSeal™	Mild Chemicals (Pesticides)	Parflex Division	-65 °F	1/4	Green	250
N-4-035-RED	250 In Stock	772 In Stock	$1.09/foot	FT	Fluid Transfer	17.2 bar	4.6 mm	69 bar	6.4 mm	0.88 inch	250 ft	-4	93 °C	N/A	Red	n/a	Polyamide (PA)	0.016 kg/m	Hi-Duty	Chemicals	Parflex Division	-65 °F	1/4	Red	250
N-4-035-YEL	Quote Required	3863 In Stock	$1.09/foot	FT	Fluid Transfer	17.2 bar	4.6 mm	1000 psi	1/4 inch	22.4 mm	250 ft	-4	93 °C	N/A	Yellow	n/a	Polyamide (PA)	0.016 kg/m	Compression	Air	Parflex Division	-65 °F	1/4	Yellow	250
N-4-040-BLU	Quote Required	Quote Required	$1.09/foot	FT	Machine Tools	310 psi	0.170 inch	1250 psi	6.4 mm	22.4 mm	250 ft	-4	93 °C	N/A	Blue	n/a	Polyamide (PA)	0.018 kg/m	Compression	Water	Parflex Division	-54 °C	1/4	Blue	250
N-4-040-GRN	Quote Required	Quote Required	$1.09/foot	FT	Fluid Transfer	21.4 bar	0.170 inch	1250 psi	6.4 mm	22.4 mm	76.2 m	-4	93 °C	N/A	Green	n/a	Polyamide (PA)	0.018 kg/m	Compression	Water	Parflex Division	-54 °C	1/4	Green	250
N-4-040-RED	Quote Required	650 In Stock	$1.09/foot	FT	Machine Tools	21.4 bar	0.170 inch	1250 psi	1/4 inch	0.88 inch	250 ft	-4	200 °F	N/A	Red	n/a	Polyamide (PA)	0.018 kg/m	Flow Controls	Chemicals	Parflex Division	-65 °F	1/4	Red	250
N-4-040-YEL	Quote Required	Quote Required	$1.09/foot	FT	Fluid Transfer	21.4 bar	0.170 inch	86.2 bar	1/4 inch	22.4 mm	76.2 m	-4	200 °F	N/A	Yellow	n/a	Polyamide (PA)	0.012 lb/ft	Compress-Align®	Mild Chemicals (Pesticides)	Parflex Division	-54 °C	1/4	Yellow	250
N-5-040-RED	15 In Stock	Quote Required	$0.61/foot	FT	Pneumatics	250	0.233	69	5/16	1.13	250	-5	200	N/A	Red	n/a	Polyamide (PA)	0.016	Compression	Air	Parflex Division	-54	5/16	Red	250
N-6-050-BLU	10 In Stock	280 In Stock	$2.12/foot	FT	Lubrication	250 psi	7 mm	1000 psi	9.5 mm	1.13 inch	250 ft	-6	200 °F	N/A	Blue	n/a	Polyamide (PA)	0.023 lb/ft	Hi-Duty	Air	Parflex Division	-54 °C	3/8	Blue	250
N-6-050-GRN	Quote Required	Quote Required	$2.12/foot	FT	Robotics	250 psi	0.275 inch	69 bar	3/8 inch	1.13 inch	76.2 m	-6	93 °C	N/A	Green	n/a	Polyamide (PA)	0.034 kg/m	Flow Controls	Lubricants	Parflex Division	-54 °C	3/8	Green	250
N-6-050-RED	250 In Stock	313 In Stock	$2.12/foot	FT	Lubrication	17.2 bar	0.275 inch	69 bar	9.5 mm	1.13 inch	250 ft	-6	93 °C	N/A	Red	n/a	Polyamide (PA)	0.034 kg/m	Hi-Duty	Chemicals	Parflex Division	-54 °C	3/8	Red	250
N-6-050-YEL	Quote Required	300 In Stock	$2.12/foot	FT	Machine Tools	17.2 bar	0.275 inch	69 bar	3/8 inch	1.13 inch	76.2 m	-6	200 °F	N/A	Yellow	n/a	Polyamide (PA)	0.023 lb/ft	Compression	Water	Parflex Division	-54 °C	3/8	Yellow	250
N-8-062-RED	Quote Required	Quote Required	TBD	FT	Pneumatics	250	0.375	1000	1/2	1.25	250	-8	200	N/A	Red	n/a	Polyamide (PA)	0.039	Compression	Air	Parflex Division	-54	1/2	Red	250
NB10X1	Quote Required	1193 In Stock	$2.85/foot	FT	Fluid Transfer	12.5 bar	0.315 inch	725 psi	0.393701 inch	34 mm	100 ft	10 mm	93 °C	N/A	Black	n/a	Polyamide (PA)	0.03 kg/m	Flow Controls	Mild Chemicals (Pesticides)	Parflex Division	-54 °C	10MM	Black	100
