*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

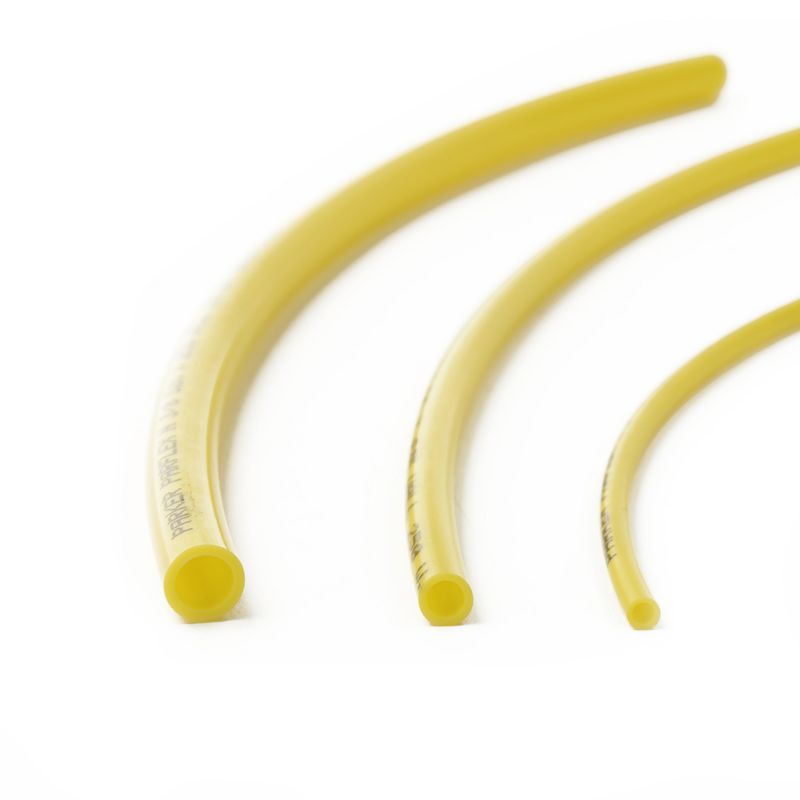

Parker N-4-040-YEL - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N-4-040-YEL

$1.09/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	200 °F
Division	Parflex Division	Media	Mild Chemicals (Pesticides)
Size	-4	Minimum Burst Pressure	86.2 bar
Maximum Operating Pressure	21.4 bar	Color	Yellow
Tube Inside Diameter	0.170 inch	Specifications Met	n/a
Minimum Bend Radius	22.4 mm	Application	Fluid Transfer
Cover Material	n/a	Tube Outside Diameter	1/4 inch
Tube Material	Polyamide (PA)	Weight	0.012 lb/ft
Length per Package	76.2 m	Compatible Fitting	Compress-Align®
Minimum Operating Temperature	-54 °C	Standard Pack Qty (ft)	250
Order Size	1/4	Color	Yellow
