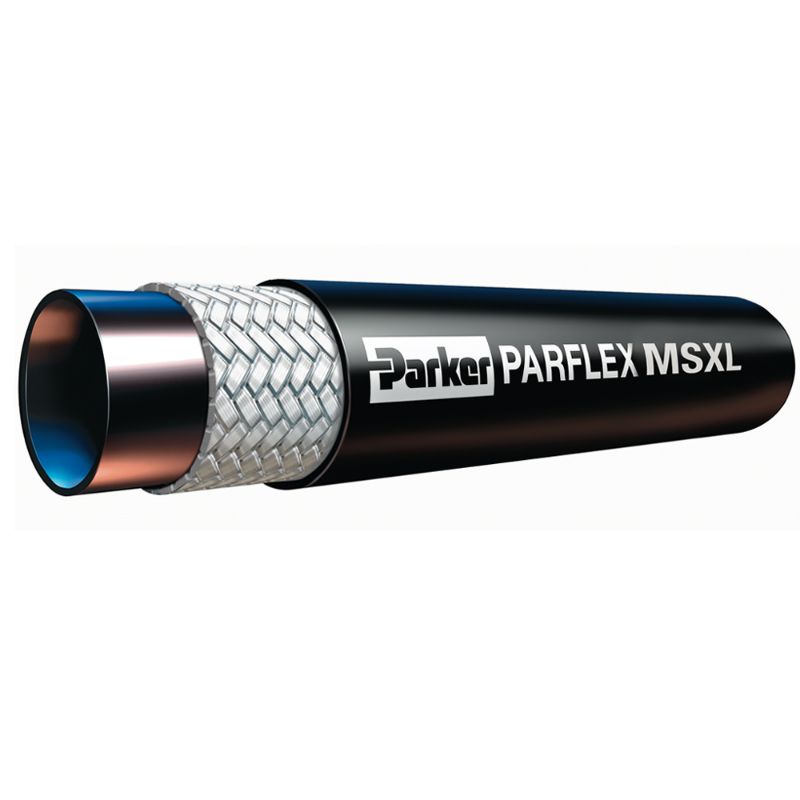

Parker MSXL-5 - Marine Hose – MSXL Hydraulic Hose for Steering 1500 psi

Name: Parker MSXL-5 - Marine Hose – MSXL Hydraulic Hose for Steering 1500 psi
SKU: MSXL-5
Price: 4.48 USD
Availability: InStock

MXSL hydraulic hose is specifically designed for marine steering systems. Sea water resistant.

AFP Availability:

600 In Stock

Summerville, SC

600

Partner Available:

577 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. MSXL-5

$4.48/each

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	2-1/4 inch
Application	Marine Steering	Cover Material	Polyurethane
Maximum Operating Temperature	85 °C	Size	-5
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	MS Series (permanent only)	Design Factor	4:1
Outside Diameter	0.500 inch	Inside Diameter	8 mm
Division	Parflex Division	Hose Reinforcement Material	Aramid Fiber
Weight	0.05 lb/ft	Maximum Operating Pressure	1500 psi
Hose I.D. (inch)	5/16
