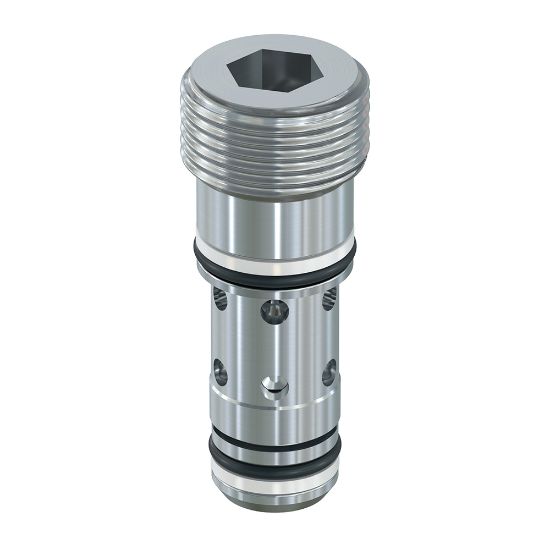

Picture of Parker K2A005N - Insert Shuttle Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker K2A005N - Insert Shuttle Valves

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. K2A005N
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ConfigurationInsertOperating Temperature-30 to +250 °F
Operation TypeAutomaticMaximum Inlet Pressure Rating350 bar
Leak Rate10 @ 5000 PSI (350 BAR) drops/minDivisionMobile Hydraulic Systems Division Europe
Cavity Size3ZFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate38 L/minFunctionShuttle
Flow Rate38 L/minInstallation Torque10 Nm
Body Materialn/aValve MaterialAll parts steel. All operating parts hardened steel
DivisionHydraulic Cartridge Systems DivisionMaximum Operating Pressure350 bar
Seal MaterialNitrileActuation TypePressure Sensing
Weight.02 kgMaximum Operating Temperature+121 °C
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)For Fluid TypeMineral-based or synthetic hydraulic fluids
Minimum Operating Temperature-34 °CFlow Rate10 GAL/MIN, 38 L/MIN
Seal MaterialNitrile
