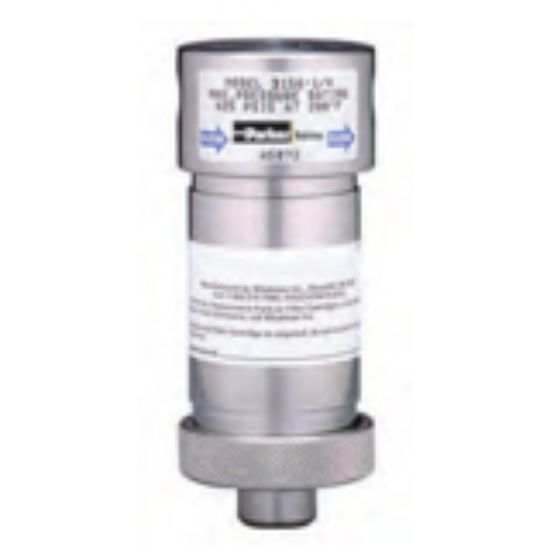

Parker 31S6 - Sample Filters

Parker Balston gas and liquid sample filters protect sensitive analyzers from sample impurities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 31S6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Materials of Construction	Stainless Steel	Port Size	1/2 inch
Maximum Operating Temperature	204 °C	Weight	1.4 kg
Brand	Balston	Drain Port Size	1/4 inch
Micron Rating	Various depending on media selected.	Filter Efficiency Rating	Dependent on Media Selection
Width	69.8 mm	Compatible Element	100-12-?? (Dependent on Filter Media Grade)
Maximum Operating Pressure	425 psig	Height	139.7 mm
Volume	93.45 cm3	Flow Rate	74 ft3/min
Filter Type	Low Volume T-type Filter	Materials of Construction	Stainless Steel
Port Connection (inch)	1/2	Filtration Efficiency	Dependent on media selection
Filter Type	Low Volume T-type Filter	Flow Rate (CFM)	74
Maximum Operating Pressure (psig)	425
