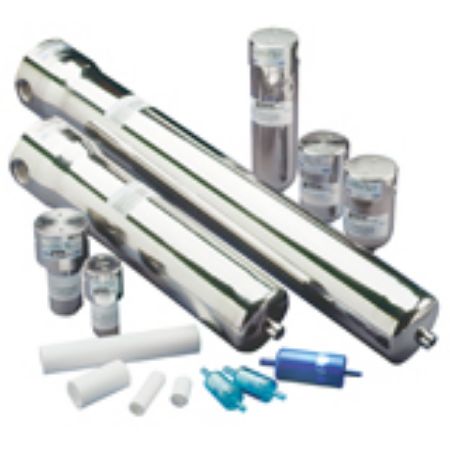

Sample Filters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Balston samples analyzer filters protect sensistive process instrumentation from sample impurities by removing solids and liquids from gases with 99.99999+% efficiency at 0.01 micron. The sample filters also provide liquid filtration to 1 micron or lower.
To satisfy a wide range of requirements, Balston sample filters are offered in a wide range of materials including stainless steel, polyproylene, and other corrosion resistant materials. The high efficiency filter elements are inert to most all liquids and gases.
Product Functions:
Separate liquids from gases
Draining collected liquid
Coalesce and separate two liquid phases
Membrane separation of sample streams
Removing gas bubbles from liquids
Quantitative measurement of solids in gas
Slipstream or bypass sampling
Slipstream sampling plus coalescing filtration
Quantitative measurement of liquids in gas
Features:
Filter solids and liquids from gases with 99.99999+% efficiency at 0.01 micron
Inert, non-contaminating disposable filter element
Temperature resistance to 900°F (482°C)
Low pressure drop
Long life between filter element changes
Read More...To satisfy a wide range of requirements, Balston sample filters are offered in a wide range of materials including stainless steel, polyproylene, and other corrosion resistant materials. The high efficiency filter elements are inert to most all liquids and gases.
Product Functions:
Separate liquids from gases
Draining collected liquid
Coalesce and separate two liquid phases
Membrane separation of sample streams
Removing gas bubbles from liquids
Quantitative measurement of solids in gas
Slipstream or bypass sampling
Slipstream sampling plus coalescing filtration
Quantitative measurement of liquids in gas
Features:
Filter solids and liquids from gases with 99.99999+% efficiency at 0.01 micron
Inert, non-contaminating disposable filter element
Temperature resistance to 900°F (482°C)
Low pressure drop
Long life between filter element changes
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Division | Port Size | Maximum Operating Temperature | Weight | Brand | Maximum Operating Pressure | Height | Width | Drain Port Size | Micron Rating | Filter Efficiency Rating | Volume | Flow Rate | Compatible Element | Materials of Construction | Filter Type | Port Connection (inch) | Filtration Efficiency | Flow Rate (CFM) | Maximum Operating Pressure (psig) | Materials of Construction | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33G-1/4 | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/4 inch | 71 °C | 1.4 kg | Balston | 100 psig | 4.5 inch | 66 mm | 1/4 inch | Various depending on media selected. | Dependent on Media Selection | 158.58 cm3 | 85 ft3/min | 100-12-?? (Dependent on Filter Media Grade) | Stainless Steel, Pyrex | High Volume T-type Filter | 1/4 | Dependent on media selection | 85 | 100 | Stainless Steel, Pyrex | High Volume T-type Filter |
