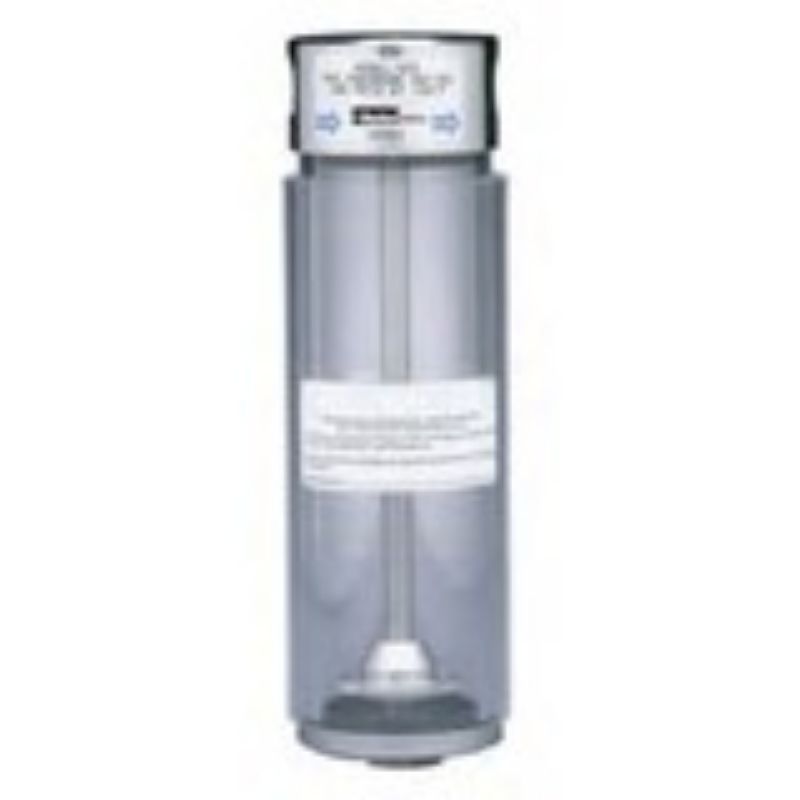

Parker 33G-1/4 - Sample Filters

Parker Balston gas and liquid sample filters protect sensitive analyzers from sample impurities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 33G-1/4

$1.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Industrial Gas Filtration and Generation Division	Port Size	1/4 inch
Maximum Operating Temperature	71 °C	Weight	1.4 kg
Brand	Balston	Maximum Operating Pressure	100 psig
Height	4.5 inch	Width	66 mm
Drain Port Size	1/4 inch	Micron Rating	Various depending on media selected.
Filter Efficiency Rating	Dependent on Media Selection	Volume	158.58 cm3
Flow Rate	85 ft3/min	Compatible Element	100-12-?? (Dependent on Filter Media Grade)
Materials of Construction	Stainless Steel, Pyrex	Filter Type	High Volume T-type Filter
Port Connection (inch)	1/4	Filtration Efficiency	Dependent on media selection
Flow Rate (CFM)	85	Maximum Operating Pressure (psig)	100
Materials of Construction	Stainless Steel, Pyrex	Filter Type	High Volume T-type Filter
